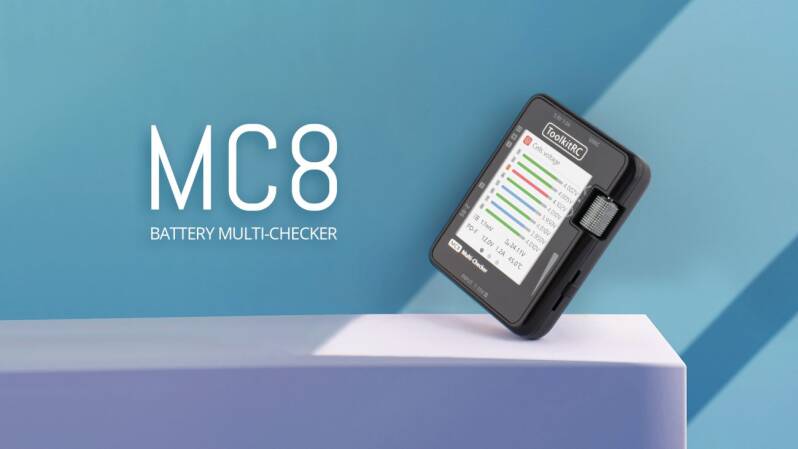

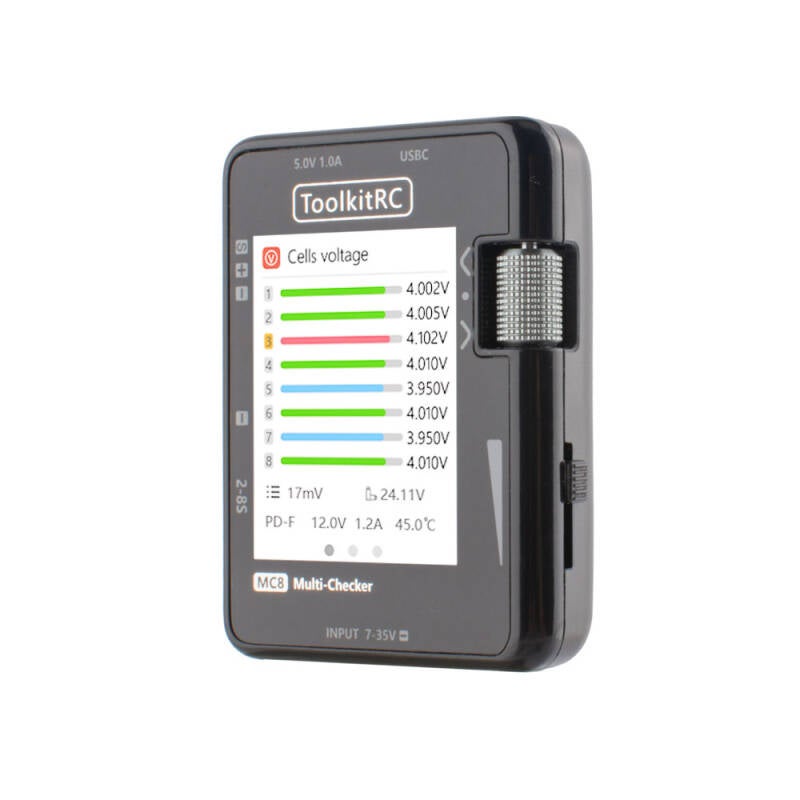

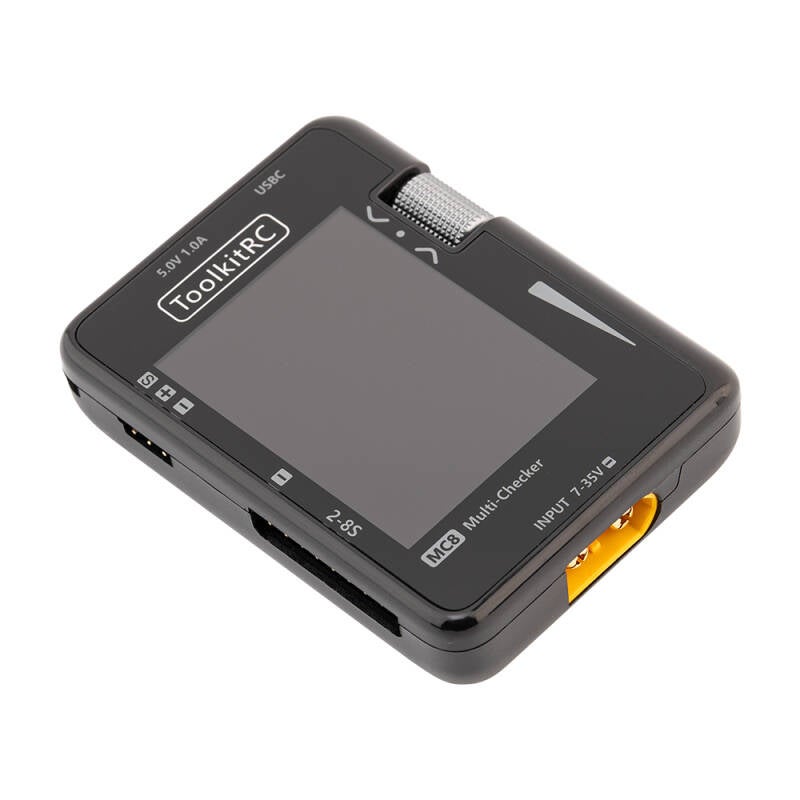

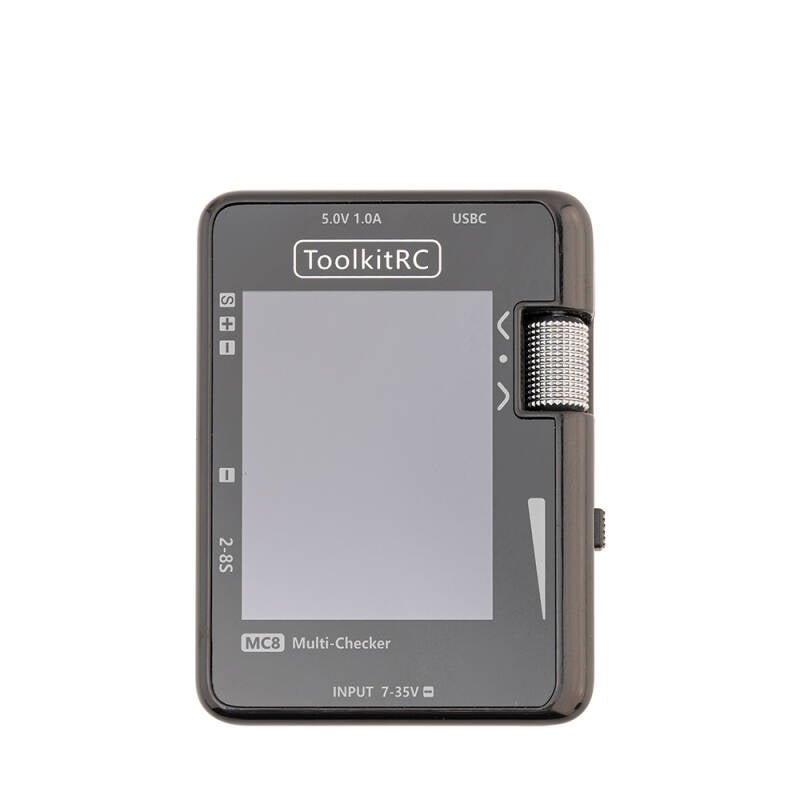

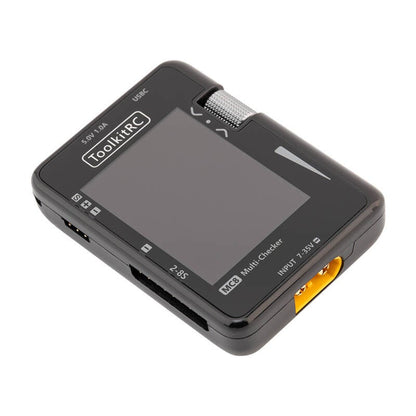

ToolkitRC MC8 Battery Multi-Checker

Compact, accurate, and versatile, the MC8 Multi-Checker is the perfect tool for RC pilots.It allows you to analyze, balance, and measure your batteries and signals with precision — all in one ultra-portable device featuring a bright IPS display and smart USB-C output.
⚡️ MC8 – Battery Multi-Checker
🧩 General

Product Size: 68 × 50 × 15 mm

Product Weight: 50 g

Box Size: 76 × 60 × 30 mm

Box Weight: 100 g

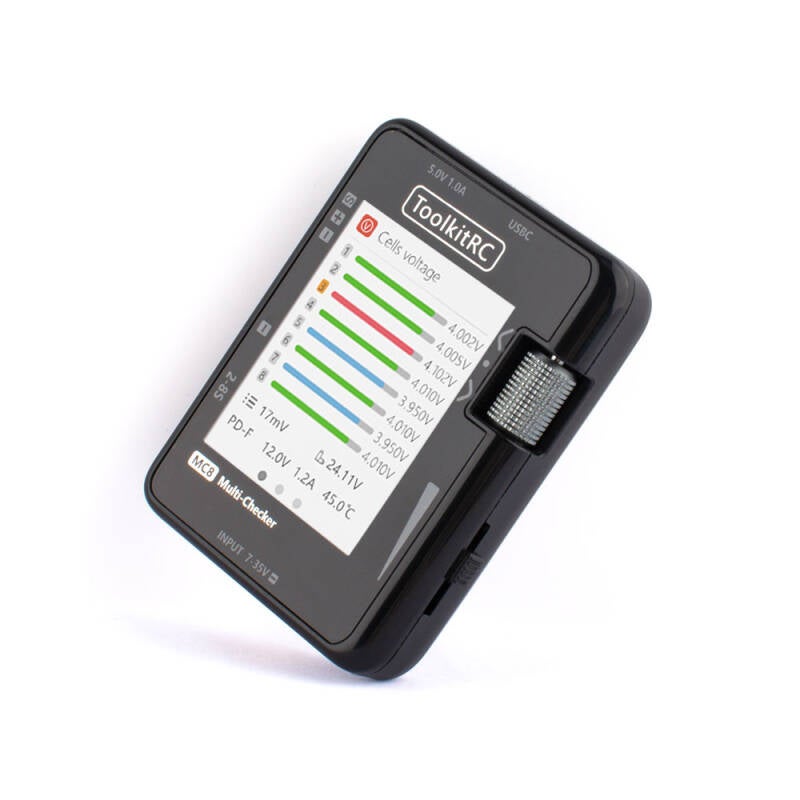

Display: IPS 2.0″ LCD – 240 × 240 px

🔌 Checker

Main Input Port (XT60): 7.0 – 35.0 V @ max 25 A

Balance Input: 0.5 – 5.0 V (LiXX 2 – 8 S)

Signal Port Input: < 6.0 V

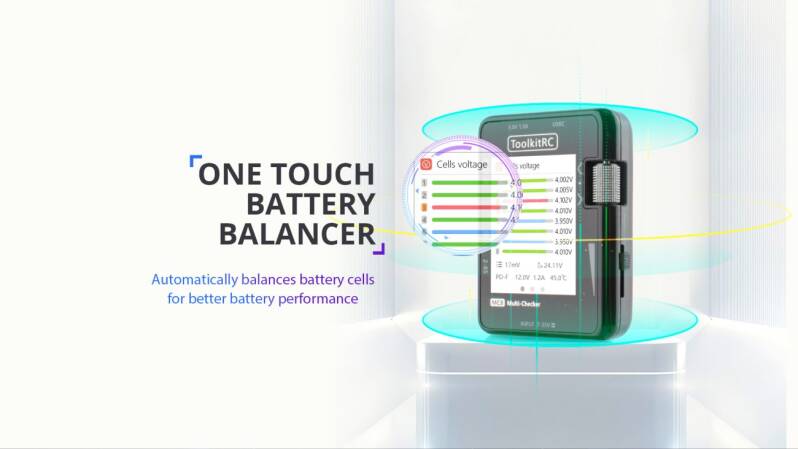

Balance Current: max 60 mA (2 – 8 S)

Balance Accuracy: < 0.005 V @ 4.2 V

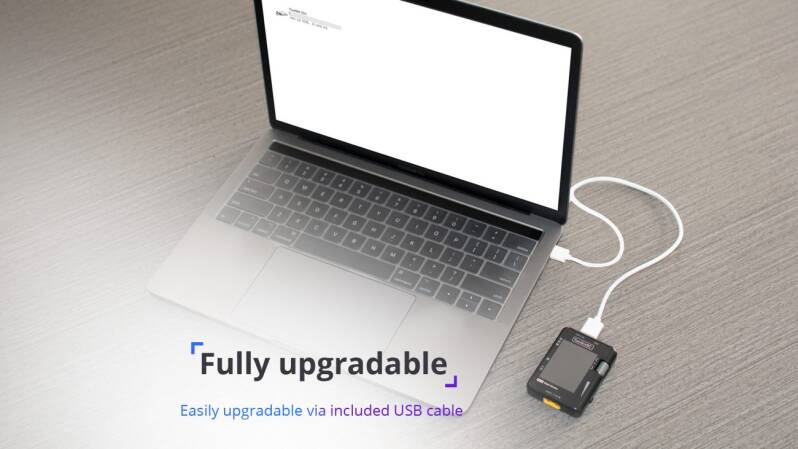

USB-A Output: 5.0 V @ 1.0 A (firmware upgrade)

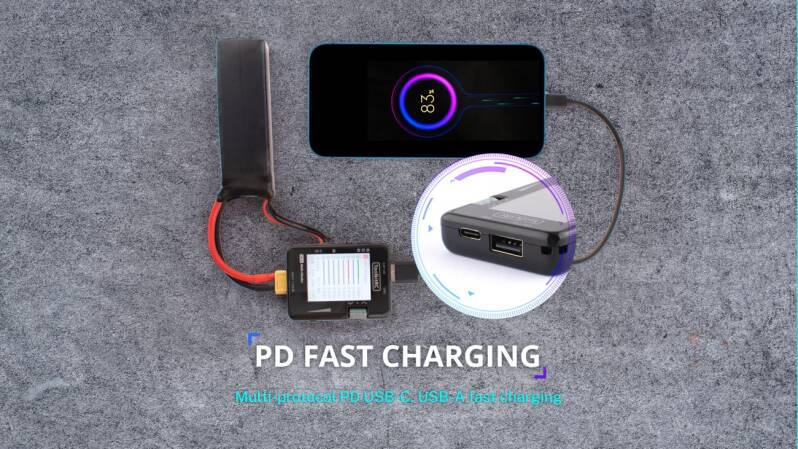

USB-C Output: 5.0 – 12.0 V @ max 20 W

USB-C Protocols: PD3.0 / QC3.0 / AFC / SCP / FCP

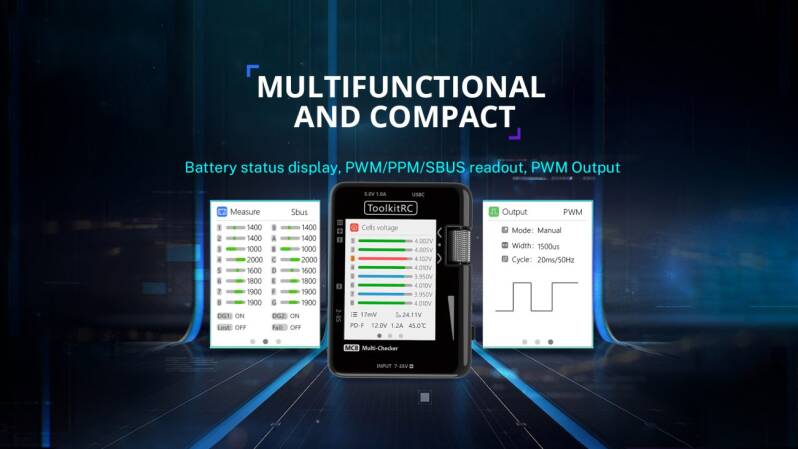

📏 Measurer

PWM: 500 – 2500 μs @ 20 – 400 Hz

PPM: 880 – 2200 μs × 8 CH @ 20 – 50 Hz

SBUS: 880 – 2200 μs × 16 CH @ 20 – 100 Hz

⚙️ Output

PWM: 1000 – 2000 μs @ 20 – 1000 Hz

PPM: 880 – 2200 μs × 8 CH @ 50 Hz

SBUS: 880 – 2200 μs × 16 CH @ 74 Hz

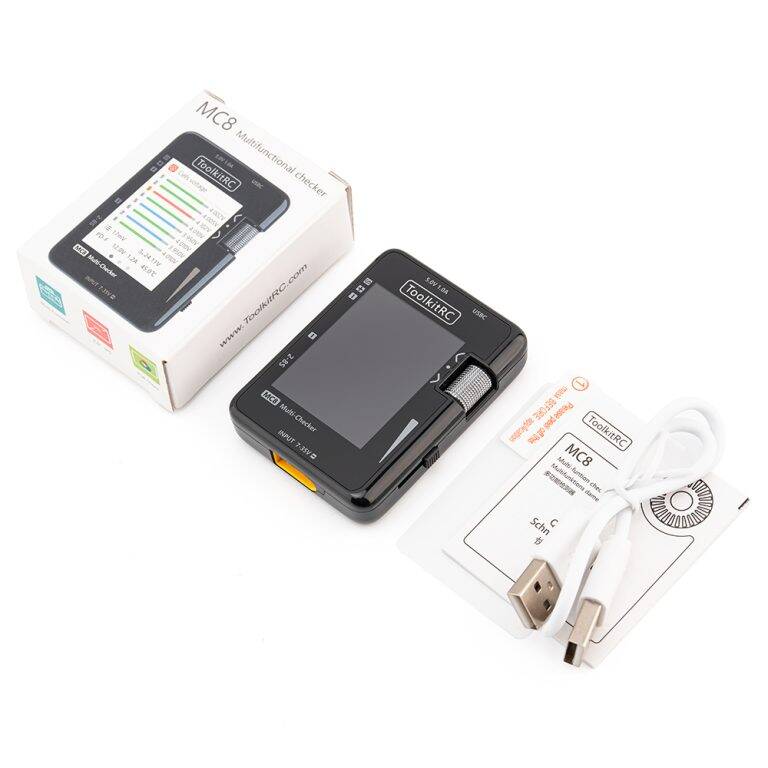

📦 In the Box

MC8 Battery Multi-Checker × 1

USB Cable × 1

Quick Manual × 1

Screen Protector × 1
