ToolkitRC M6DAC Pro AC 300W | DC 800W | 16A×2/25A SYNC | 65W Fast charge | Wireless Charge AC/DC

Compact, powerful, and versatile, the M6DAC Pro is the ultimate all-in-one charger for RC enthusiasts. With up to 700 W SYNC power, precise balancing, and universal battery compatibility, it’s the perfect solution for professional charging on the field or at home.
⚡️ M6DAC Pro — Technical Specifications
🧩 General

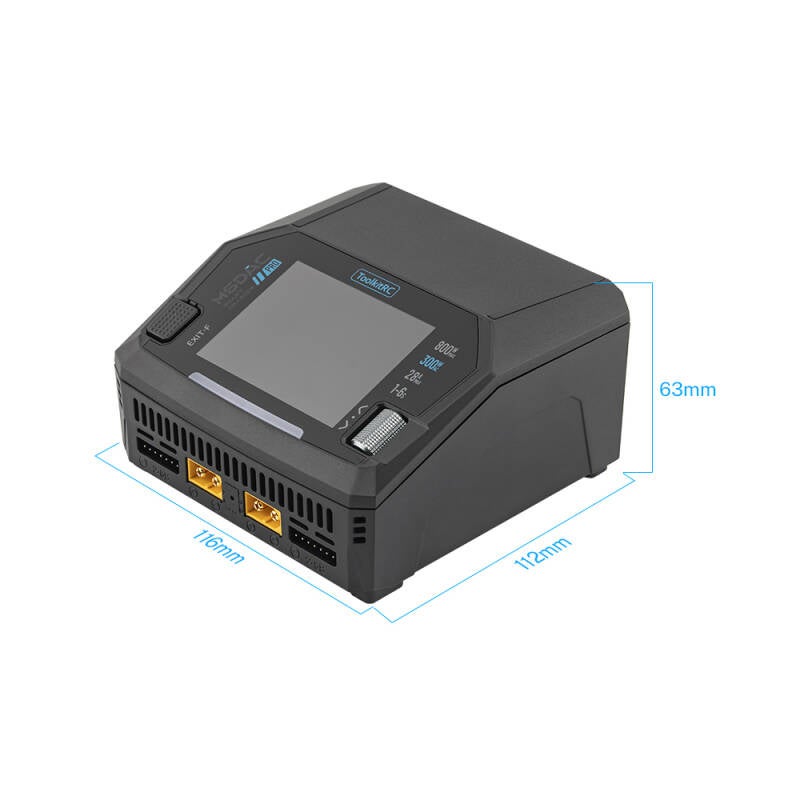

Product Size: 116 × 112 × 63 mm

Product Weight: 600 g

Box Size: 164 × 135 × 68 mm

Box Weight: 730 g

Display: IPS 2.8″ LCD – 320 × 240 px

🔌 Power & Input

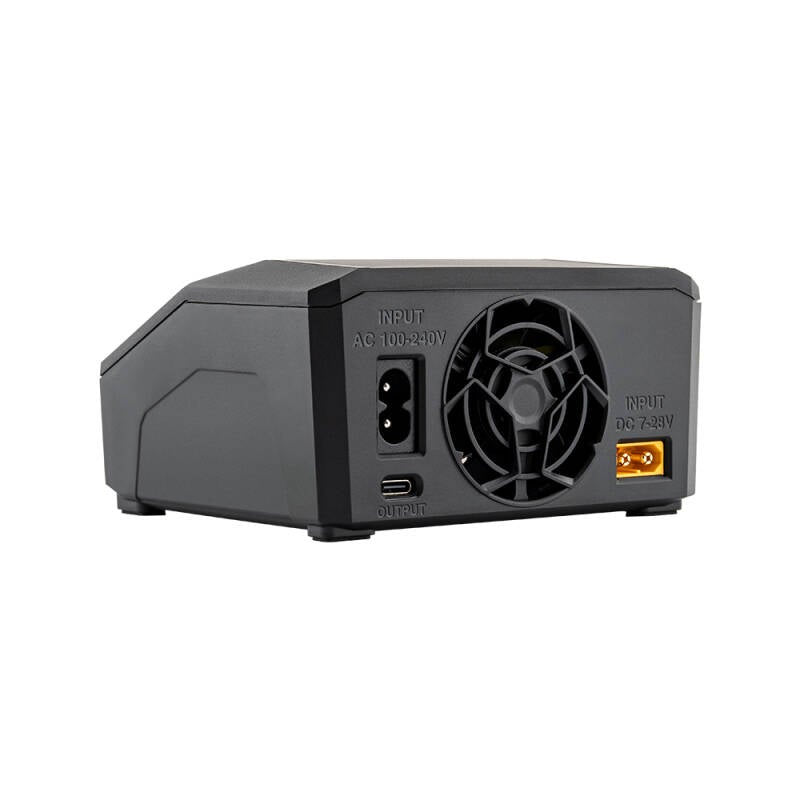

AC Input Voltage: 100 – 240 V @ max 330 W

DC Input Voltage: 7 – 28 V @ max 32 A

🔋 Battery Compatibility

LiPo / LiHV / LiFe / Li-ion / LTO: 1 – 6 S

NiMH: 1 – 16 S

Pb (Lead-acid): 1 – 10 S

⚖️ Balancing

Balance Current: 1000 mA (2 – 6 S)

Balance Accuracy: < 0.005 V

⚡️ Charging & Discharging

Charging Power: 1.0 – 16.0 A @ 400 W per channel→ up to 28 A @ 700 W in SYNC mode

Discharging Power:

1.0 – 16.0 A @ 400 W (Bridge Mode)

1.0 – 16.0 A @ 400 W/CH (Recycling Mode)

0.1 – 3.0 A @ 15 W/CH (Normal Mode)

Power Output: 0.5 – 16.0 A @ 1.0 – 28.0 V / 400 W per channel

⚙️ Extra Features

USB-C Output: 65 W max (20 V / 3.25 A) or Firmware Upgrade Port

Supported USB Protocols:PD3.0 / PD2.0 / PPS / QC4 / QC3.0 / QC2.0 / AFC / FCP / SCP / PE2.0 / PE1.1 / SFCP / VOOC

Wireless Charging: 10 W

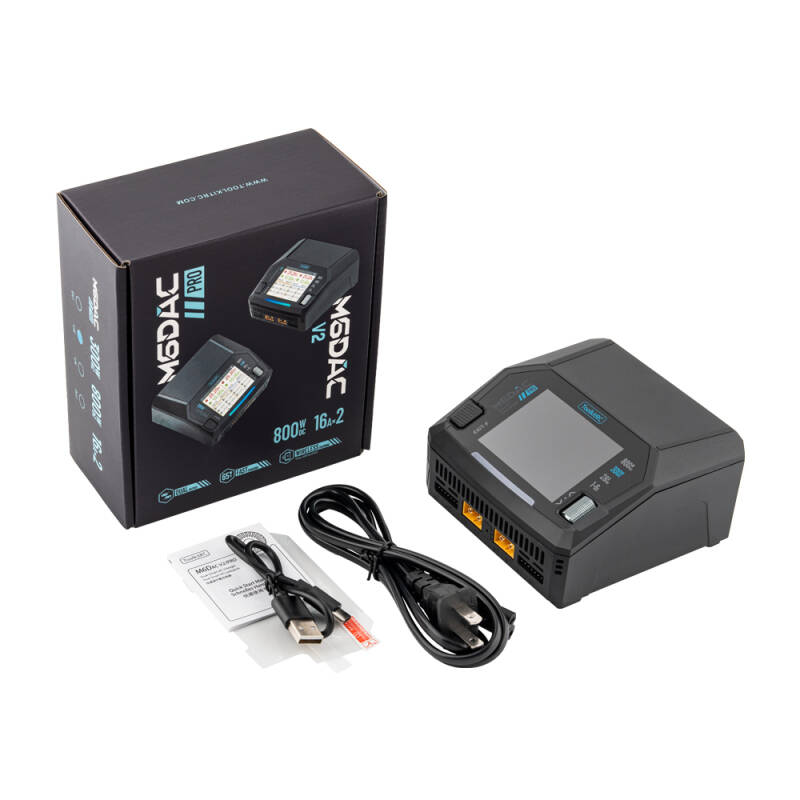

📦 In the Box

M6DAC Pro Charger × 1

AC Input Cable × 1

USB Cable × 1

Quick Manual × 1

Screen Protector × 1
