ToolkitRC M6D Dual Output AC/DC Charger – 1–6S LiPo/LiHV/LiFe

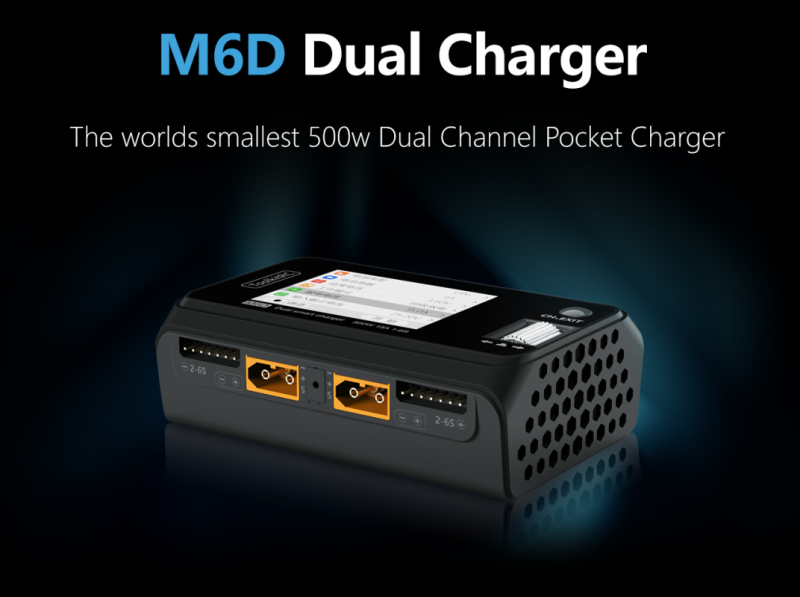

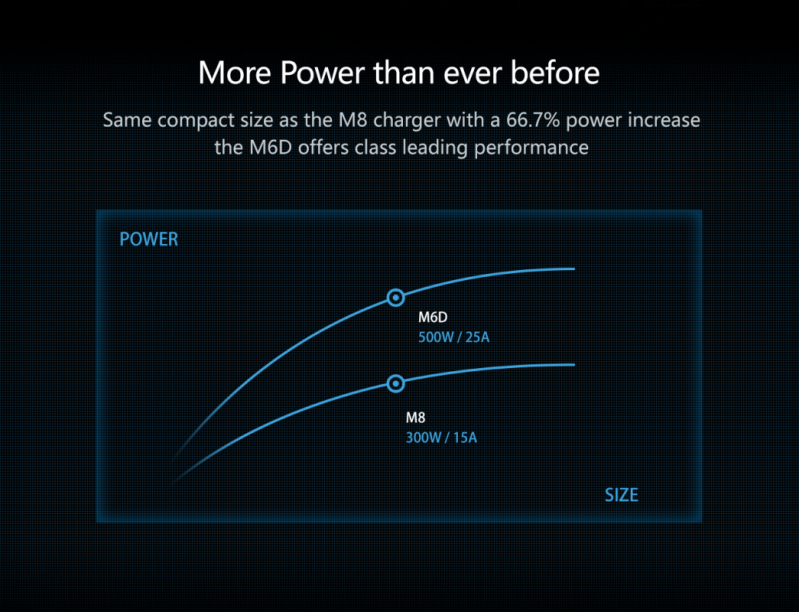

Compact, lightweight, and powerful, the M6D offers up to 500 W of charging power in a portable format. Dual-channel capability, precise balancing, and universal battery support make it the perfect companion for RC pilots seeking performance and convenience.
⚡️ M6D – Technical Specifications
🧩 General

Product Size: 98 × 68 × 35 mm

Product Weight: 220 g

Box Size: 108 × 80 × 46 mm

Box Weight: 300 g

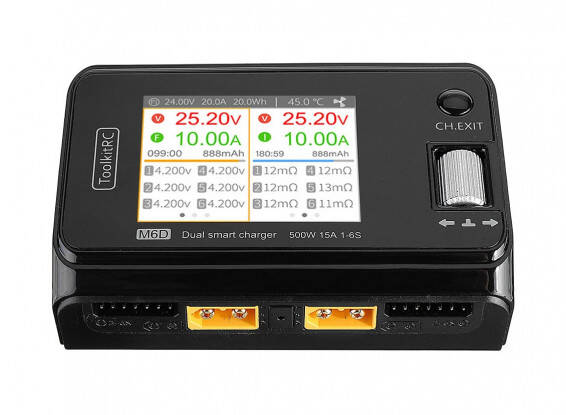

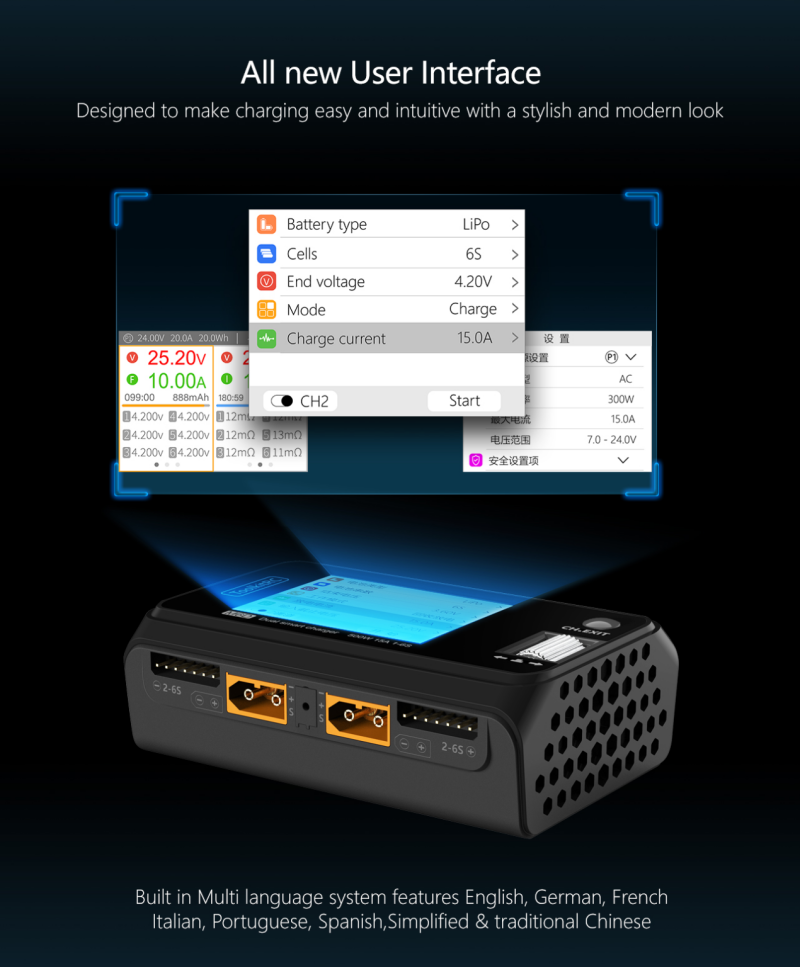

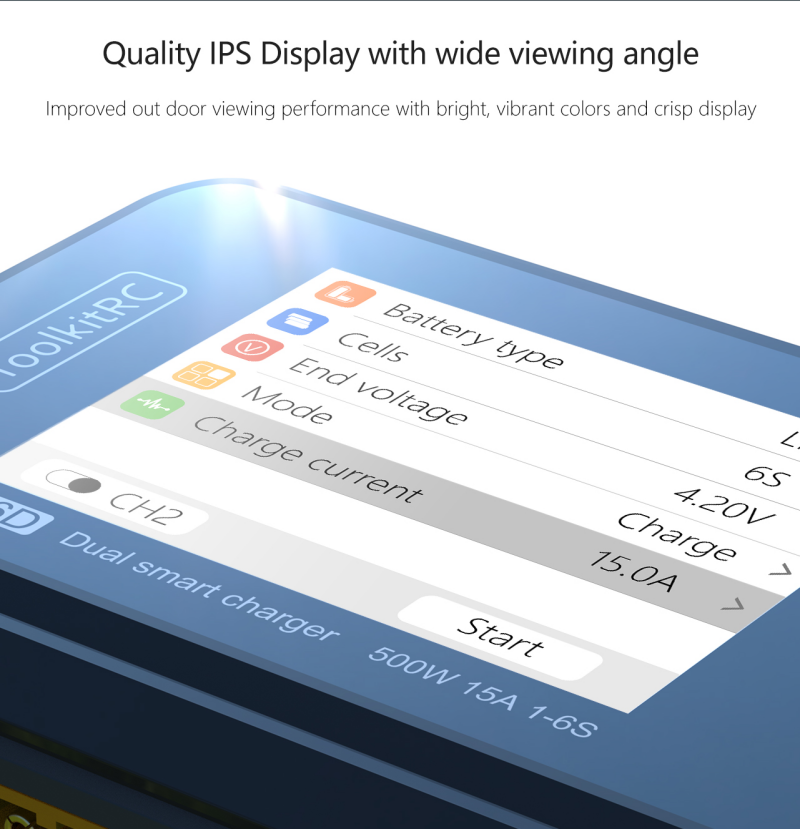

Display: IPS 2.4″ LCD – 320 × 240 px

🔌 Power & Input

Input Voltage: 7.0 – 28.0 V @ max 30 A

🔋 Battery Compatibility

LiPo / LiHV / LiFe / Li-ion: 1 – 6 S

NiMH: 1 – 16 S

Pb (Lead-acid): 1 – 10 S

⚖️ Balancing

Balance Current: 800 mA (2 – 6 S)

Balance Accuracy: < 0.005 V

⚡️ Charging & Discharging

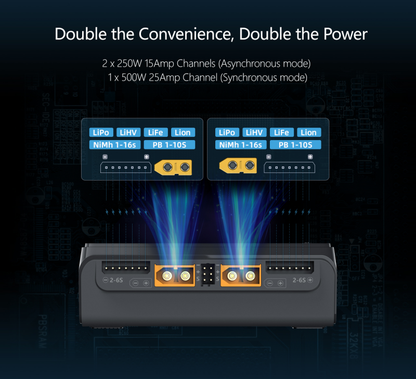

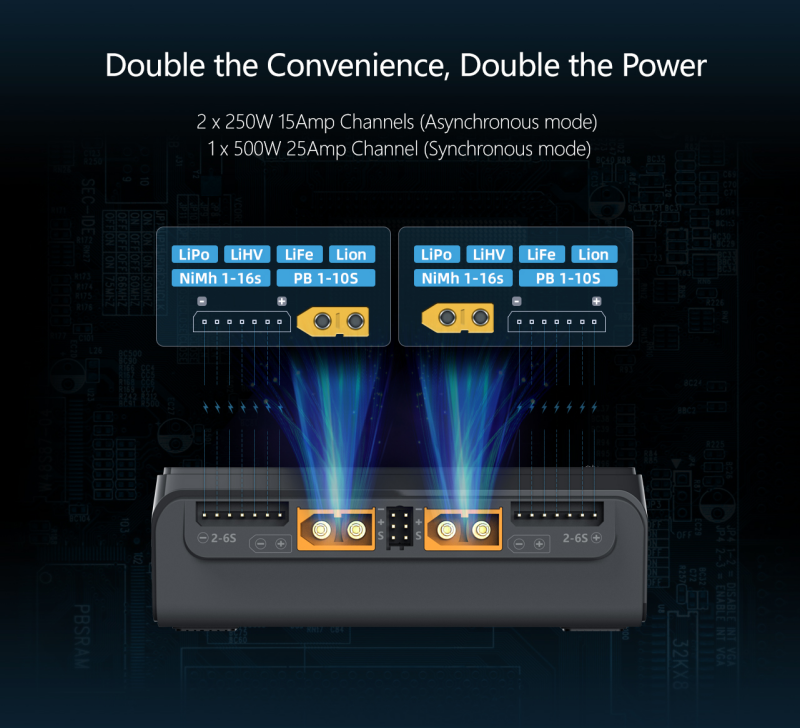

Charge Power:

500 W @ max 25 A (SYNC mode)

250 W @ max 15 A × 2 (ASYNC mode)

Discharge Power:

500 W @ max 15 A (Recycle mode)

12 W @ max 3 A (Normal mode)

⚙️ Additional Specifications

Voltage Range: 0.2 – 5.0 V (1 – 6 S)

Internal Resistance: 1 – 100 mΩ (1 – 6 S)

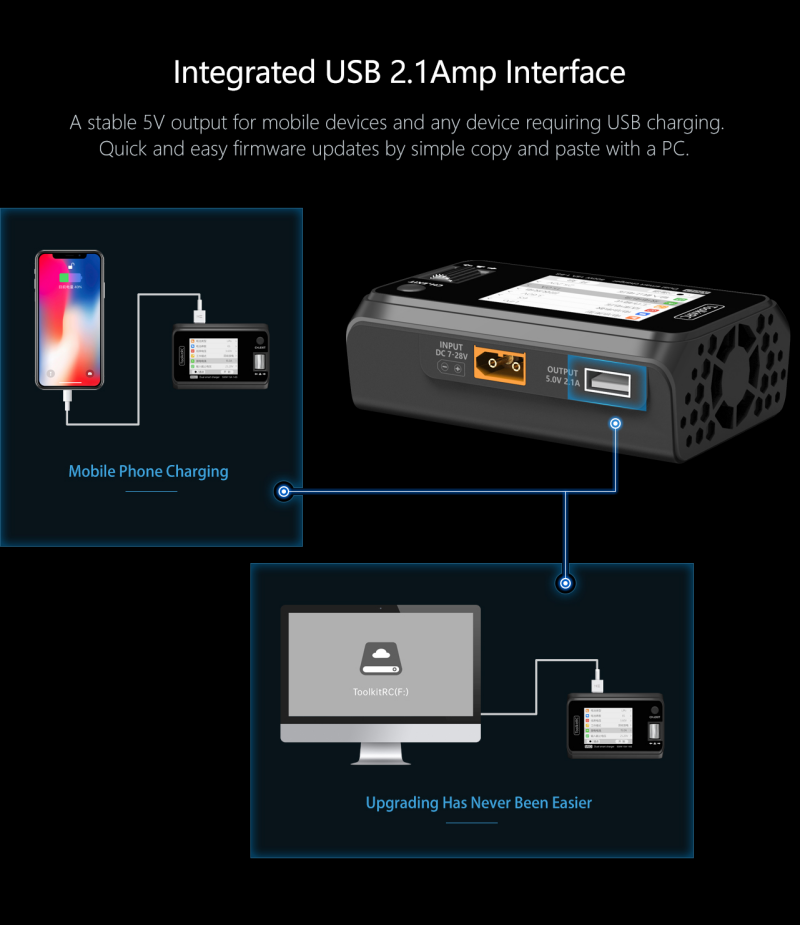

USB Output: 2.1 A @ 5.0 V

Firmware Upgrade: via USB 3.0 port

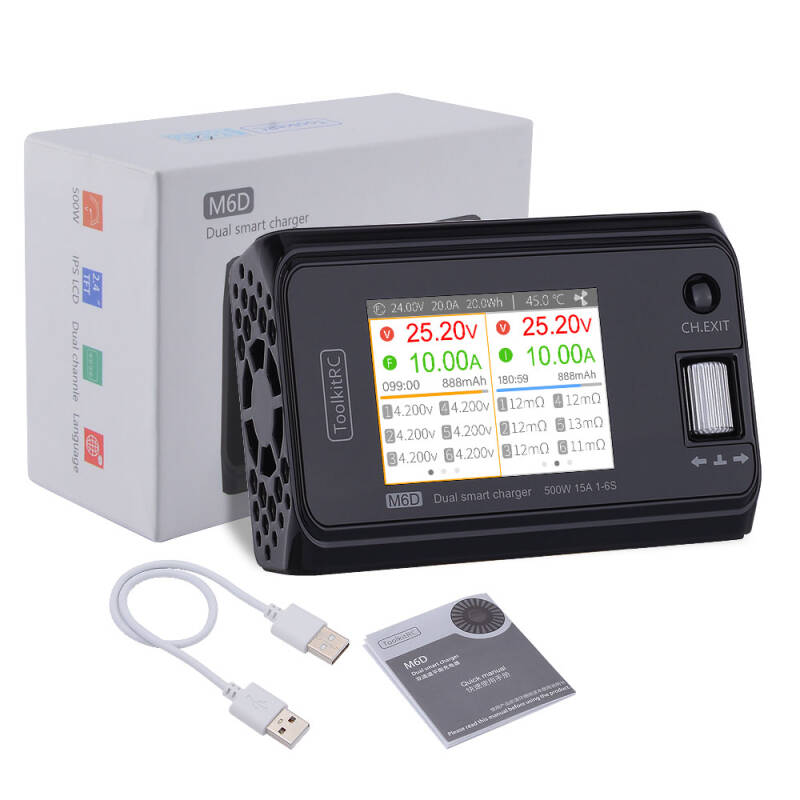

📦 In the Box

M6D Charger × 1

USB-C Cable × 1

Quick Manual × 1
