THETA THM982 Brushless HV Servo - Mini / 35mm tail servo - 450-600 size

THETA THM982 Brushless HV Servo
Brushless HV servo in the 35 mm size.The application range of the servo is versatile from helicopter tail servo in 450-600 midi size, in function models, as a throttle servo, rudder servo in shipbuilding, large aircraft and in a variety of different RC cars.
THETA THM982 Brushless HV Servo
Specifications---------------------------------------Motor: Brushless Operating Voltage: 5V bis 8.4V
with max. 2.3A current consumption:- Speed at 5V: 0.080 sec/60°- Speed at 6V: 0.070 sec/60°- Speed at 7.4V: 0.060 sec/60°- Speed at 8.4V: 0.050 sec/60°
- Torque at 5V: 6 kg/cm- Torque at 6V: 7 kg/cm- Torque at 7.4V: 8 kg/cm- Torque at 8.4V: 9 kg/cm

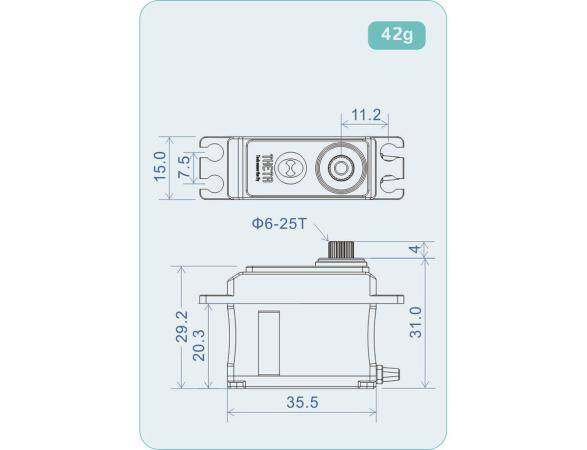

Weight: 42g Dimensions (mm): 35 × 15 × 31mm Neutral pulse (factory-made): 760µs Working Frequency: 50–1000Hz Output toothing: 25T Ø5.9mm (Nexspor, Futaba, Align, BK, Savöx usw.)
Accessories:1x Servo THM9824x Servohorn1x Screw M34x Rubber damper4x Brass grommet4x Tapping screw for servo1x Capacitor
