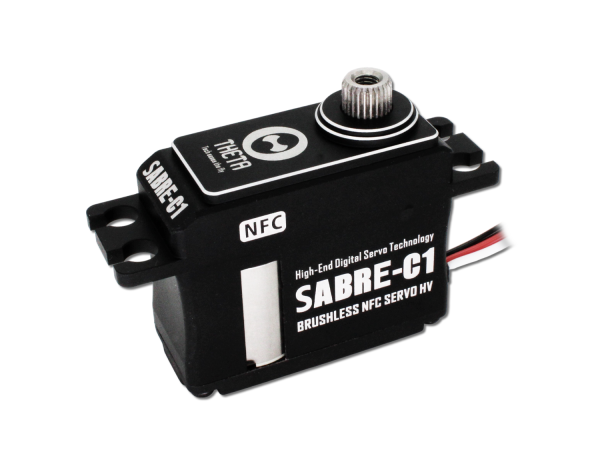

THETA SABRE-C1 Brushless HV Servo with NFC - Mini / 35mm swashplate 500/600 size

THETA SABRE-C1 Brushless HV Servo with NFC
NFC programmable Brushless HV Servo in the mini 35 mm size.The application range of the servo is versatile from helicopter swashplate servo in the 500 to 600 size, as a throttle servo, rudder servo in shipbuilding, large aircraft and in a variety of different RC cars.Due to the SANWA SSR compatibility, the advantages of Sanwa Super Response transmission can be used in RC car applications.
THETA SABRE-C1 Brushless HV Servo with NFC
Specifications---------------------------------------Motor: Brushless Operating Voltage: 5V bis 8.4V
with max. 2.3A current consumption:- Speed at 5V: 0.100 sec/60°- Speed at 6V: 0.090 sec/60°- Speed at 7.4V: 0.080 sec/60°- Speed at 8.4V: 0.070 sec/60°
- Torque at 5V: 10 kg/cm- Torque at 6V: 12 kg/cm- Torque at 7.4V: 14 kg/cm- Torque at 8.4V: 15 kg/cm

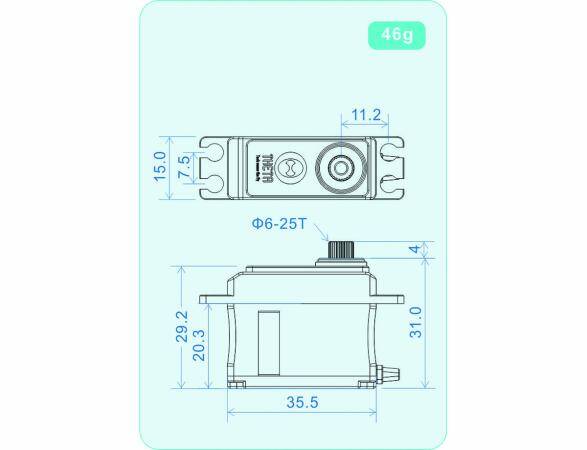

Weight: 46g Dimensions (mm): 35 × 15 × 31mm Neutral pulse (factory-made): 1520µs Neutral pulse (optional per App): 760µs Working Frequency: 50–400Hz Output toothing: 25T Ø5.9mm (Nexspor, Futaba, Align, BK, Savöx usw.)
Accessories:1x Servo Sabre-C14x Servo horn1x Screw M34x Rubber damper4x Brass grommet4x Tapping screw for servo
