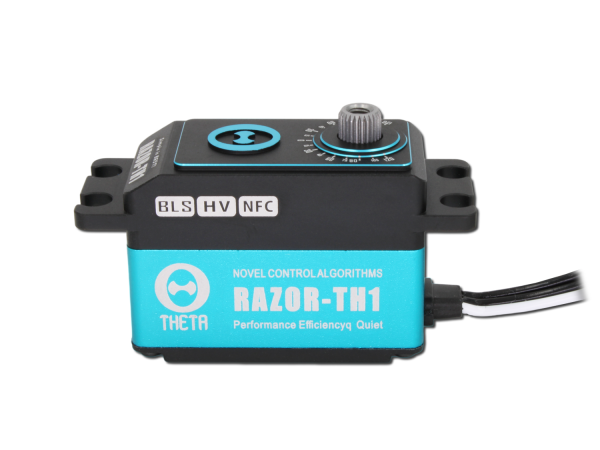

THETA RAZOR-TH1 Standard Low-Profile Brushless HV Servo with NFC - Tail 550-800 size Black color

THETA RAZOR-TH1 Low-Profile Brushless HV Servo with NFC
NFC programmable brushless HV servo in the 40 mm low-profile size.The application range of the servo is versatile from helicopter tail rotor servo from the 550 size up to the 800 size, as a throttle servo, rudder servo in shipbuilding, large aircraft and in a variety of different RC Cars.Due to the SANWA SSR compatibility, the advantages of Sanwa Super Response transmission can be used in the RC car sector.
THETA RAZOR-TH1 Brushless HV Servo with NFC
Specifications---------------------------------------NFC programmable via Android mobile phone app
Motor: Brushless Operating Voltage: 5V bis 8.4V
with max. 3A current consumption:- Speed at 5V: 0.087 sec/60°- Speed at 6V: 0.072 sec/60°- Speed at 7.4V: 0.064 sec/60°- Speed at 8.4V: 0.056 sec/60°
- Torque at 5V: 19 kg/cm- Torque at 6V: 21 kg/cm- Torque at 7.4V: 23 kg/cm- Torque at 8.4V: 24 kg/cm
with max. 5A current consumption:- Speed at 5V: 0.079 sec/60°- Speed at 6V: 0.065 sec/60°- Speed at 7.4V: 0.058 sec/60°- Speed at 8.4V: 0.051 sec/60°
- Torque at 5V: 22 kg/cm- Torque at 6V: 26 kg/cm- Torque at 7.4V: 28 kg/cm- Torque at 8.4V: 30 kg/cm

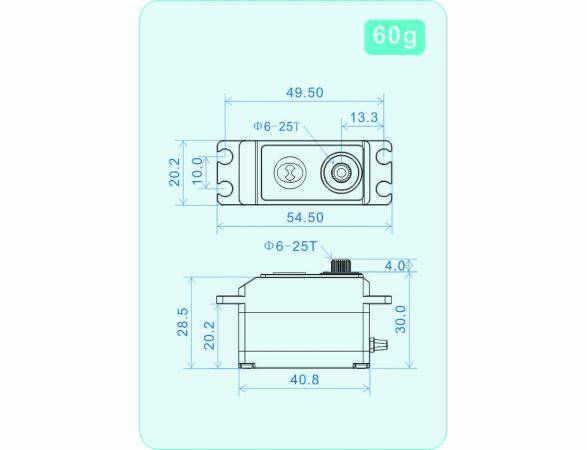

Weight: 60g Dimensions (mm): 41×20.5×29.5mm Neutral pulse (factory-made): 760µs Neutral pulse (optional per App): 1520µs Working Frequency: 50–1000Hz Output toothing: 25T Ø5.9mm (Nexspor, Futaba, Align, BK, Savöx usw.)
Accessories:1x Servo RAZOR-TH13x Servo horn1x Screw M34x Rubber damper4x Brass grommet4x Tapping screw for servo1x Capacitor
