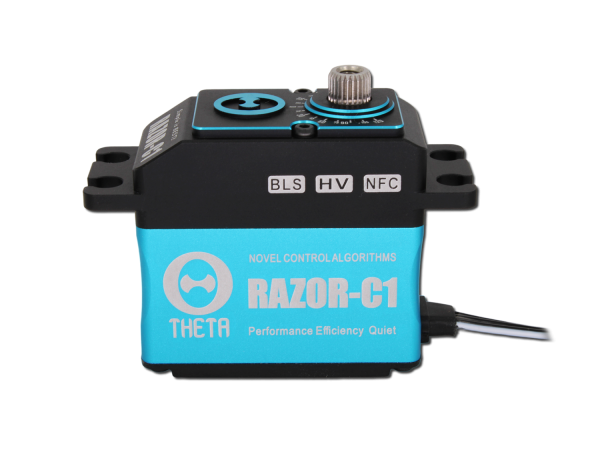

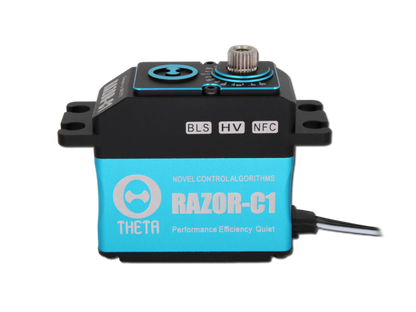

THETA RAZOR-C1 NFC HV Standard Brushless Servo - swashplate 550/800 heli size

THETA RAZOR-C1 Brushless HV Servo with NFC
NFC programmable brushless HV servo in the 40 mm standard size.The application range of the servo is versatile from helicopter swashplate servo from the 550 size up to the 800 size, as a throttle servo, rudder servo in shipbuilding, large aircraft and in a variety of different RC Cars.Due to the SANWA SSR compatibility, the advantages of Sanwa Super Response transmission can be used in the RC Car range.
THETA RAZOR-C1 Brushless HV Servo with NFC
Specifications---------------------------------------NFC programmable via Android mobile phone app
Motor: BrushlessOperating Voltage: 5V bis 8.4V
with max. 2.6A current consumption:- Speed at 5V: 0.108 sec/60°- Speed at 6V: 0.084 sec/60°- Speed at 7.4V: 0.071 sec/60°- Speed at 8.4V: 0.060 sec/60°
- Torque at 5V: 23 kg/cm- Torque at 6V: 27 kg/cm- Torque at 7.4V: 34 kg/cm- Torque at 8.4V: 36 kg/cm
with max. 5A current consumption:- Speed at 5V: 0.102 sec/60°- Speed at 6V: 0.079 sec/60°- Speed at 7.4V: 0.067 sec/60°- Speed at 8.4V: 0.056 sec/60°
- Torque at 5V: 32 kg/cm- Torque at 6V: 37 kg/cm- Torque at 7.4V: 44 kg/cm- Torque at 8.4V: 48 kg/cm
Weight: 73gDimensions (mm): 40x20x38mmNeutral pulse (factory-made): 1520µsNeutral pulse (optional per App): 760µsMaximale Working Frequency: 50–400HzOutput toothing: 25T Ø5.9mm (Nexspor, Futaba, Align, BK, Savöx usw.)
