THETA Kenny Ko Edition HV Servo Set 3S 12V Brushless – 3x THL787H + 1x THL782H

Short Description
High-performance THETA Kenny Ko Edition HV 3S (12V) servo set designed for RC helicopters 550 to 800+ class.Includes 3x THL787H cyclic servos and 1x THL782H tail servo, delivering extreme speed, precision, and HV performance.

Full Description
The THETA Kenny Ko Edition HV Servo Set is a premium solution for demanding RC helicopter pilots who want maximum performance, precision, and reliability.
Developed in collaboration with world-class pilot Kenny Ko, this set is optimized for modern high-performance helicopters and aggressive 3D flying.
This combo includes:

3x THL787H cyclic servos

1x THL782H tail servo

Designed for HV 3S operation (up to 12.6V), these servos offer:

Ultra-fast response

Outstanding centering accuracy

High torque output

Brushless motor technology

Futaba-style spline compatibility

Perfect for pilots looking for top-tier performance in competition or extreme 3D flying.

Key Features

Kenny Ko Edition

HV 3S compatible (up to 12.6V)

Brushless motors

Ultra-fast speed

Exceptional centering precision

High torque output

Futaba-compatible output spline (25T)

Suitable for 550–800+ size helicopters

Technical Specifications
THL787H Cyclic Servos (x3)

Motor Type: Brushless

Operating Voltage: 7.5V – 12.6V

Speed:

0.09 sec/60° @ 7.5V

0.08 sec/60° @ 9.0V

0.07 sec/60° @ 11.1V

0.06 sec/60° @ 12.6V

Torque:

24 kg/cm @ 7.5V

28 kg/cm @ 9.0V

33 kg/cm @ 11.1V

38 kg/cm @ 12.6V

Weight: 75 g

Dimensions: 40 × 20 × 38 mm

Neutral Pulse: 1520 µs

Working Frequency: 50–400 Hz

Output Shaft: 25T (Ø 5.9 mm)

THL782H Tail Servo (x1)

Motor Type: Brushless

Operating Voltage: 7.5V – 12.6V

Speed:

0.065 sec/60° @ 7.5V

0.057 sec/60° @ 9.0V

0.050 sec/60° @ 11.1V

0.045 sec/60° @ 12.6V

Torque:

12 kg/cm @ 7.5V

14 kg/cm @ 9.0V

17 kg/cm @ 11.1V

19 kg/cm @ 12.6V

Weight: 75 g

Dimensions: 40 × 20 × 38 mm

Neutral Pulse: 760 µs

Working Frequency: 50–1000 Hz

Output Shaft: 25T (Ø 5.9 mm)

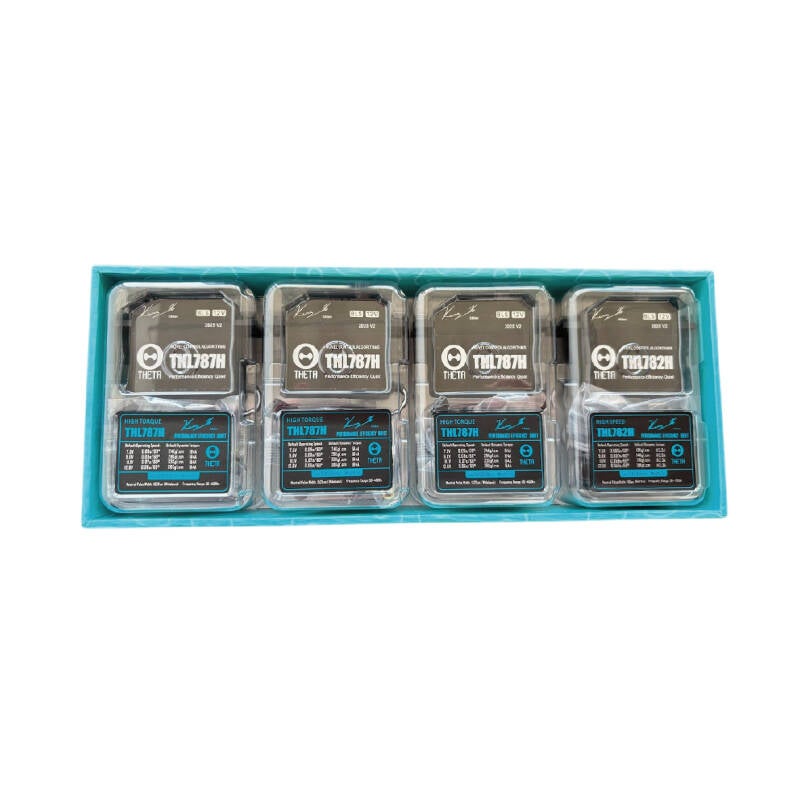

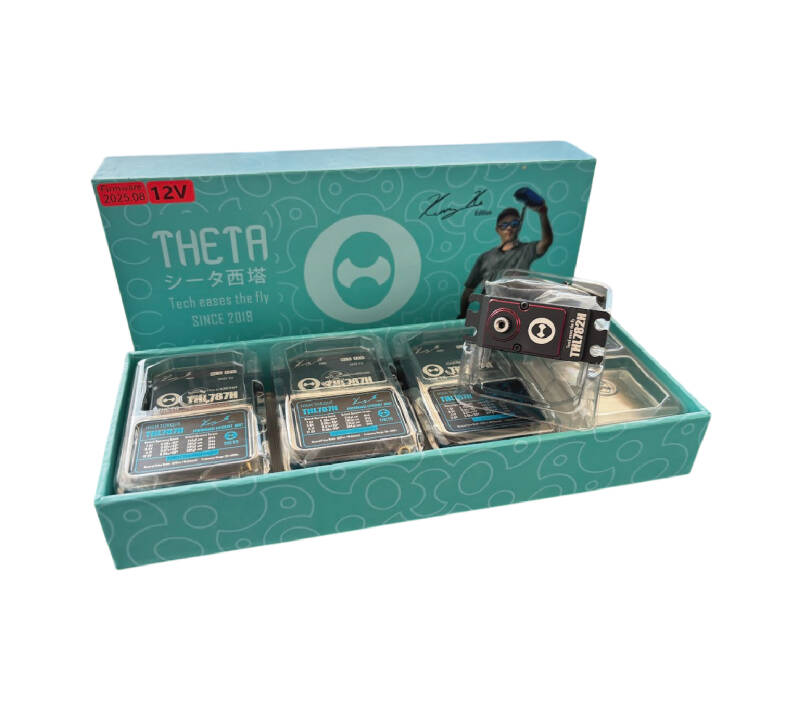

Box Content

3x THETA THL787H (Cyclic)

1x THETA THL782H (Tail)

Application
Recommended for RC helicopters from 550 to 800+ size, including high-performance and competition setups.
