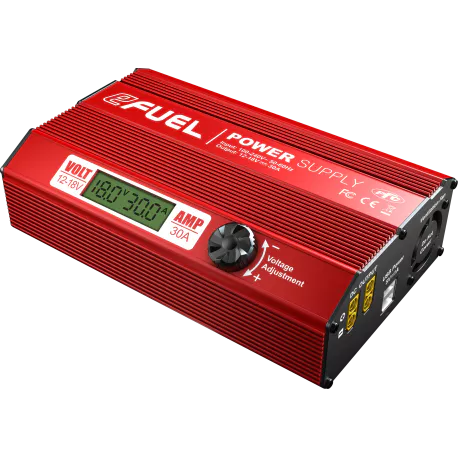

SkyRC eFuel 540W / 30A Power Supply

The eFuel 540W / 30A Power Supply is a high-performance switching AC/DC unit designed to power the most demanding RC chargers and DC equipment. It converts standard 100–240V AC mains power into a stable and adjustable 12–18V DC output, delivering up to 30A of continuous current.
Perfect for workshops, race pits, and advanced charging setups, this power supply combines reliability, safety, and real-time monitoring in a compact and robust housing.
✅ Key Features

Universal AC Input: 100–240V AC compatible worldwide

High Output Power: Up to 540W and 30A continuous current

Adjustable Output Voltage: 12–18V DC

Dual DC Outputs (XT90): Power two devices simultaneously

Large LCD Display: Real-time voltage and current monitoring

Dual USB Outputs: 2 × 5V / 1A for accessories and mobile devices

Active PFC (Power Factor Correction): High efficiency and stable output

Smart Cooling System: Temperature-controlled fan

Full Protection System:

Over-temperature protection

Overload protection

Short-circuit protection

Quiet, Stable & Efficient Operation

📐 Technical Specifications

Input Voltage: 100–240V AC, 50–60Hz

Output Voltage: 12–18V DC (±0.5V)

Max Output Current: 30A ±1A

Max Power: 540W

Efficiency: Approx. 89%

Power Factor: > 0.98

Cooling: Temperature-controlled fan

Output Connectors: Dual XT90 DC outputs + 2 × USB (5V / 1A)

Dimensions: 218 × 139 × 59.5 mm

Weight: Approx. 1.62 kg

📦 Box Contents

1 × eFuel 540W / 30A Power Supply

1 × AC Power Cable

1 × User Manual
