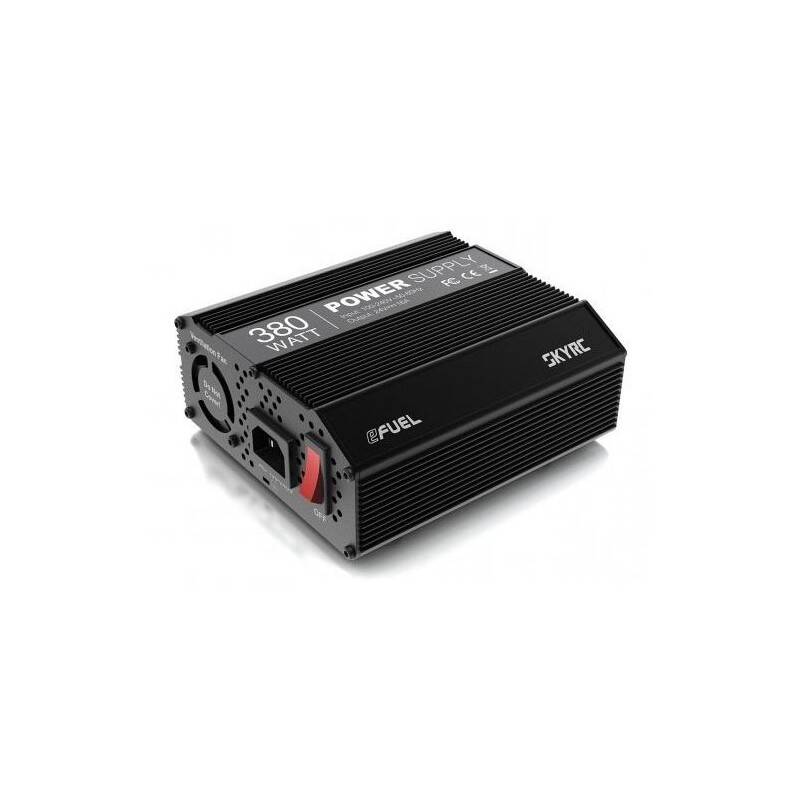

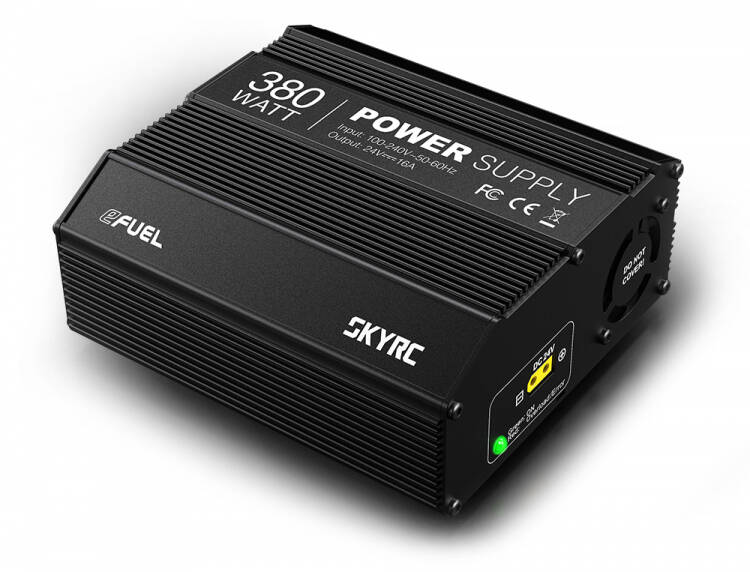

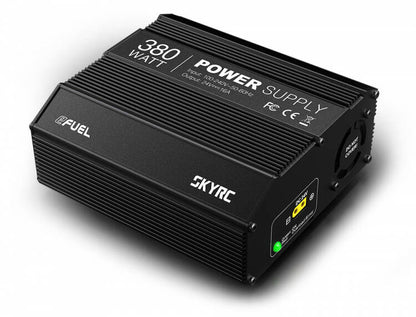

SkyRC eFuel 380W 24V / 16A Power Supply

The eFuel 380W Power Supply is a compact, high-performance AC/DC power unit designed to reliably power demanding RC battery chargers. It converts standard 100–240V AC household current into a stable 24V DC output, delivering up to 16A and 380W of continuous power.
Ideal for workshops, race pits, and professional charging setups, the eFuel 380 ensures clean, safe, and efficient power delivery.
✅ Key Features

Universal AC Input: 100–240V AC, worldwide compatibility

High Output Power: 24V DC / 16A / 380W

Active PFC (Power Factor Correction): High efficiency and stable performance

Smart Cooling System: Temperature-controlled cooling fan activates at 50°C

Full Protection System:

Over-current protection

Over-voltage protection

Over-temperature protection

Short-circuit protection

Overload Indicator: Red LED warning and automatic shutdown under excessive load

Low Output Ripple: Less than 300mV for safe charger operation

Quiet & Efficient Operation

📐 Technical Specifications

Input Voltage: 100–240V AC, 50–60Hz

Output Voltage: 24V DC ±0.5V

Max Output Current: 16A

Max Power: 380W

Efficiency: Approx. 88%

Power Factor: > 0.98

Voltage Ripple: < 300mV

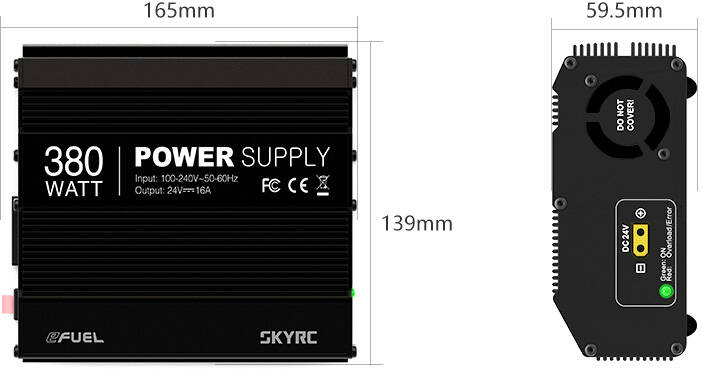

Dimensions: 165 × 139 × 59.5 mm

Weight: Approx. 1.1 kg

📦 Box Contents

1 × eFuel 380W Power Supply (24V / 16A)

1 × AC Power Cable

1 × User Manual
