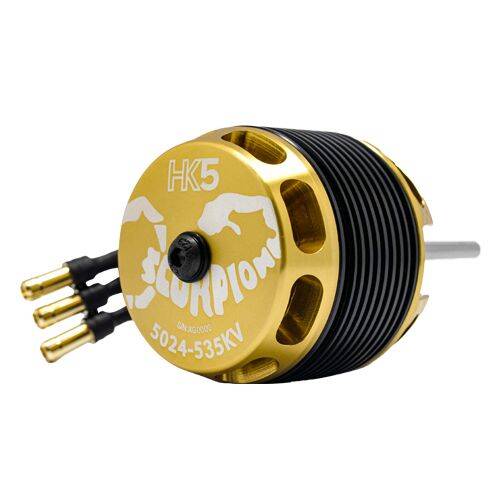

Scorpion HK5-5024-535KV series 700 class brushless motor

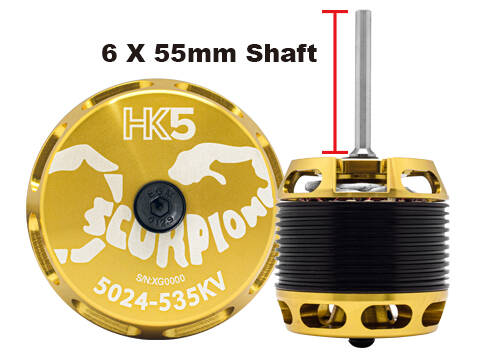

The Scorpion "HK5 - Series" : the fifth generation of Scorpion's renowned and award winning MOTOR, 2 SHAFT LENGTHS possible, 6x55mm and 6x36mm
The HK5 Series lives up to and exceeds our standards of the most Powerful and Efficient motors, with market leading Torque per Amp capabilities. In addition, on the HK5 series we focused specifically on motor cooling and motor temperature. With an all new Internal Fan design, combined with our proven external centrifugal fan, we have nearly doubled the amount of airflow passing through the motor. The result is much improved cooling, and cooler operating temperatures.
The HK5-5024-535kv is designed primarily for High Power 700 class helicopters. With the larger Stator Diameter, it provides more torque and more power, for equal weight as compared to the previous HKII-4530-540kv motor.
specificationsMotor Kv 535KV RPM/VoltWeight 598.0g Grams ( 21.09oz)Motor Body Dimensions 62.8mm x 61.40mm (2.47" x 2.42")External Shaft Dimensions 5.98mm x 55mm (0.235" x 2.16")Continuous Current 130 AmpsContinuous Power 5772 WattsPeak Current 260A (2 seconds)Peak Power 11500 Watts (2 seconds)Max Lipo Cell* 12sStator Diameter 50 mm (1.97 in)Stator Thickness 24 mm (0.94 in)No. of Stator Arms 12No. of Stator Poles 10Motor Wind 5TMotor Wire 1.6mm*Higher Cell Count possible with appropriate gear ratio adjustment
