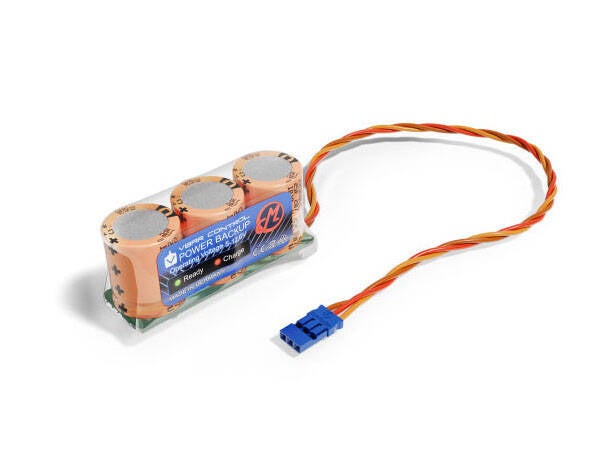

Mikado Backup Mini 3x25F VBar Control # 05588

Mikado Backup Mini 25F
Benefits at a glance

automatic activation and deactivation, depending on the operational status of the model (motor switch position, stick inputs)
all voltages can be monitored separately via telemetry
charging currents are adjustable, both for initial charging and for topping-up during operation
recharges automatically and immediately whenever needed
companion App warns the pilot whenever the backup is used
this unit ensures the everyday operation of your valuable models

Hardware features

wide input voltage range from 3 V up to 12.6 V (3s LiPo) with a 16 V peak margin
Capacity 3x 25F
20+ A peak current
short circuit protection
fast charge (adjustable) up to 2.4 A
charging current is ramped up slowly, to protect main power supply
decoupled channels for power delivery and for charging
VLink Telemetry monitoring and control
no r/c channel (servo connector) must be sacrificed, pass-through via main connector
active balancer between capacitors for low idle discharge
up to 3 units can be connected parallel, tripling the capacity and power; cascaded units are fully suported by companion App
telemetry input for other sensors or ESCs (daisy-chaining)

SpecificationsPower Supply3-12.6 V (3s LiPo), max. 16 V, 25FDimensionsapprox. 28 x 55 x 19 mm (H x W x D)Weightapprox. 33 g including wiresPower Rating20+ A peak
