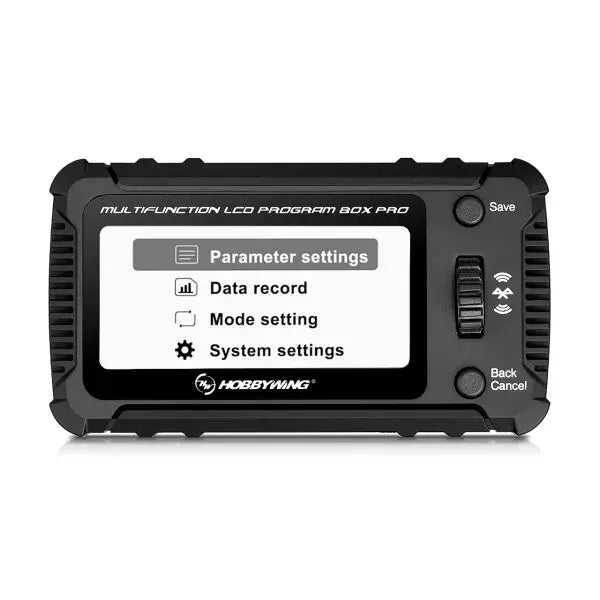

Hobbywing LCD program box PRO for Platinum, Xerun and Ezrun

The multifunctional LCD Programming Box Pro, with its 2.8'' large LCD screen, provides the convenience of programming brushless ESCs quickly and easilywhether on the go or at home on the computer. With a USB-C adapter, the box can also be connected to a computer to update the firmware for example. Another feature is that the LCD Programming Box can measure the voltage of individual lithium cells or entire packs. So, three excellent functions in one compact device.
Note: Please refer to the programming settings of Your controller to find out which values can be set. Do not power the programming box unless the instructions for Your controller require the programming box to be powered by an external power supply.

Features:

Vivid display with a screen diagonal of 2.8'' (approximately 7cm)
Backlight adjustment with 20 available levels
Easy operation thanks to the control wheel
Save and export controller settings
Built-in battery tester for 1-8S batteries
Integrated Bluetooth signal
Compatible with the HW Link V2 app (iOS and Android)

Technical Specifications:

Input Voltage DC : 5-12.6V*
Ports : USB Typ-C | Regler | Stromversorgung
Display : 2.8'' LCD
LiPo Measurement : 2-8S LiPo / LiIon / LiFe
Measurement Accuracy : +/- 0.1V
Dimensions : 105.6x59.24.4mm
Weight : 85g

Note: If the ESC does not have an integrated/external BEC, a separate battery is required for powering this programming box.
Supported ESCs:

XERUN car-ESCs: Version 2.0 and newer
EZRUN car-ESCs: Version 2.0 and newer
PLATINUM air-ESCs
Seaking Pro boat-ESCs
Selected QUICRUN car-ESCs
