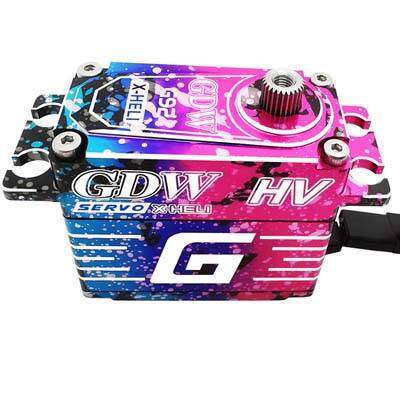

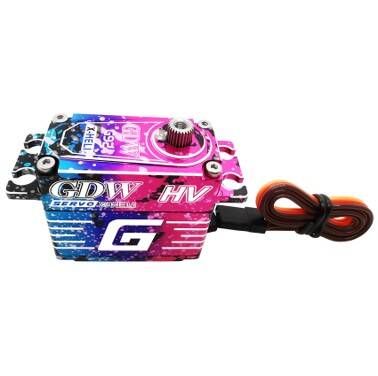

GDW G92 HV Brushless Swashplate servo - 550/700 size

GDW G92 HV Brushless Standard swashplate Servo for helicopters 550/700 size

Standard Size Servo
Operating voltage range: 4.8V – 8.4V
Working frequency: 1520µs / 333Hz
Dimensions: 40mm (55mm) x 20mm x 37.5mm
Weight: 77g ± 1g
Bench test values:31kg.cm/0.125sec/60°@6.0V38kg.cm/0.1sec/60°@7.4V43kg.cm/0.09sec/60°@8.4V
Dead band: 2µs
Motor type: Brushless motor 17mm x 18mm
Gear material: steel
Horn gear spline: 25T ⌀ 5.9mm
Wire length: 330mm ± 5mm
Wire diameter: 0.3mm2
Number of wire cores: 60
Feature:Race-class helicopter steering gearHelicopter high-speed digital steering gearStainless steel output teeth, double bearingsTough and wear-resistantQuick response, extraordinary response28KG 0.055SStandard swashplate, for helicoptersCompetition level configuration, player selectionHigh speed and stable
