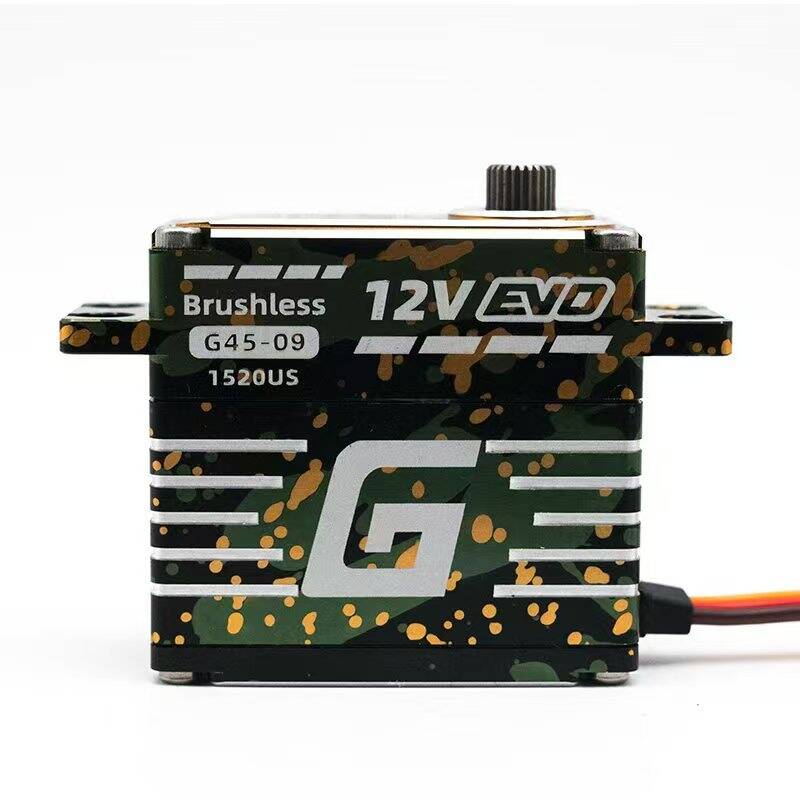

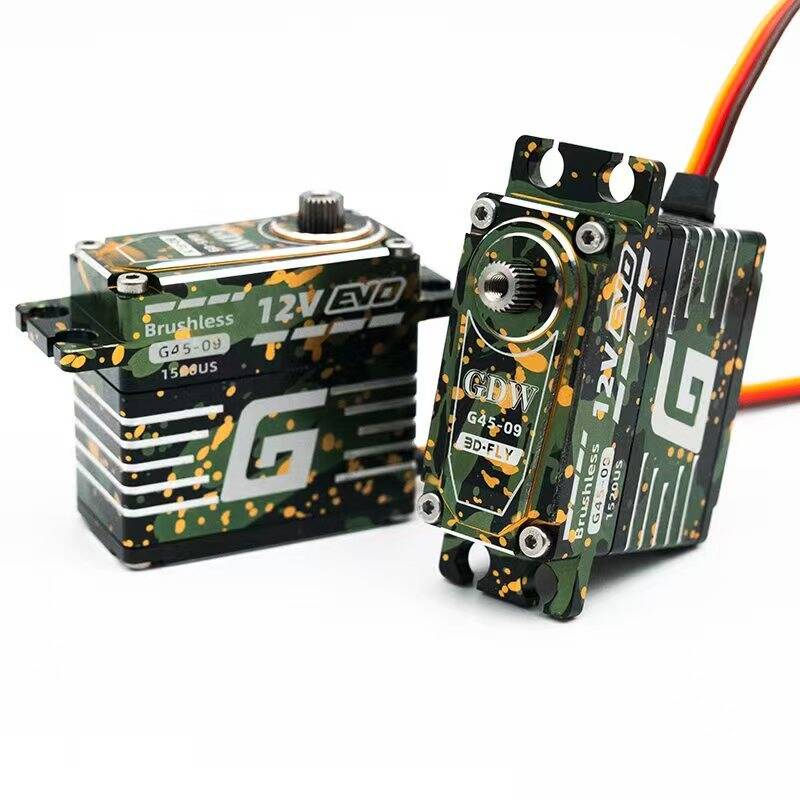

GDW G45-09 swashplate and tail servo 12V / 1520us - 550/700 size

The GDW G45-09 is a high-performance brushless servo designed for the swashplate or tail of 550–700 size RC helicopters. Running on 12V and using a standard 1520 µs pulse, it delivers exceptional torque, fast response, and rock-solid precision for demanding 3D or sport flying.
🔧 Technical Specifications (12V) — Updated

Type: Digital Brushless Servo

Rated Voltage: 12 V

Voltage Range: 8.4–12.8 V

Torque @ 12V: approx. 45 kg-cm (≈ 625 oz-in)

Speed @ 12V: approx. 0.09 s / 60°

Gear Material: Hardened steel gears

Bearings: Dual ball bearings

Neutral Pulse: 1520 µs

Operating Frequency: 333 Hz

Mapping Direction: CW / CCW (selectable)

Operation Angle: ≥ 90° total travel

Operating Temperature: –10°C to +60°C

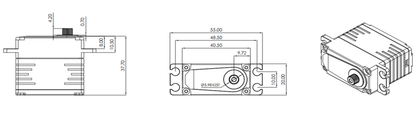

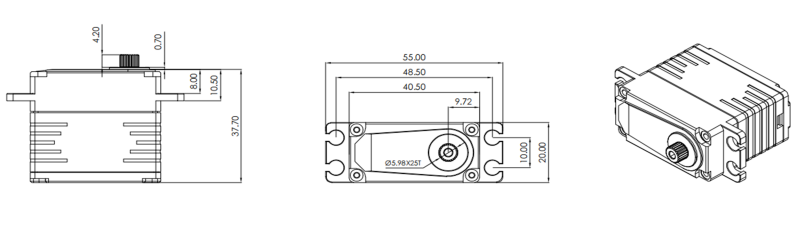

Dimensions: approx. 40.4 × 20.1 × 38.6 mm

Weight: approx. 78 g
