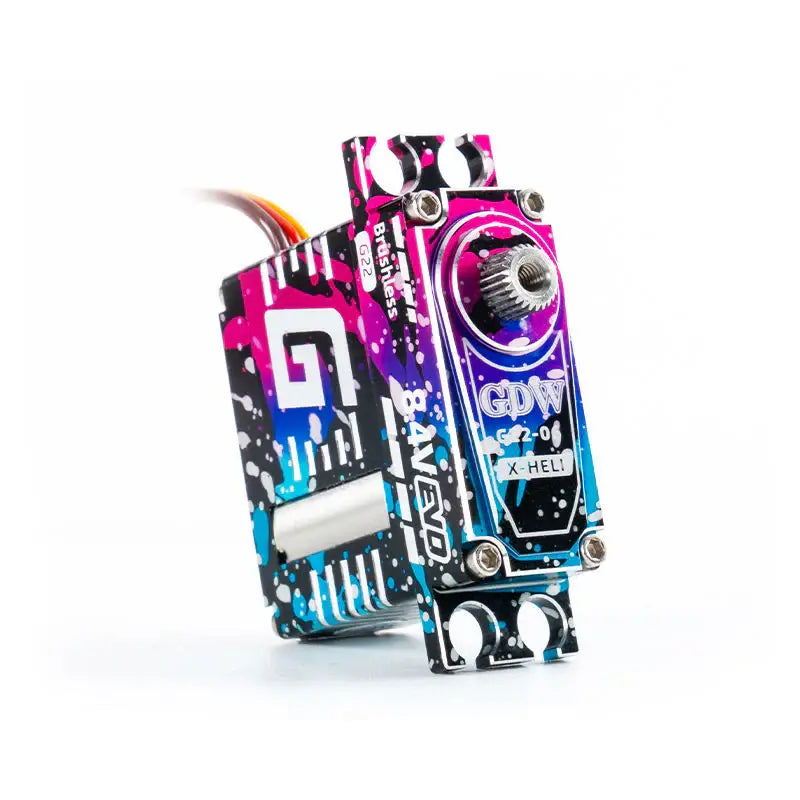

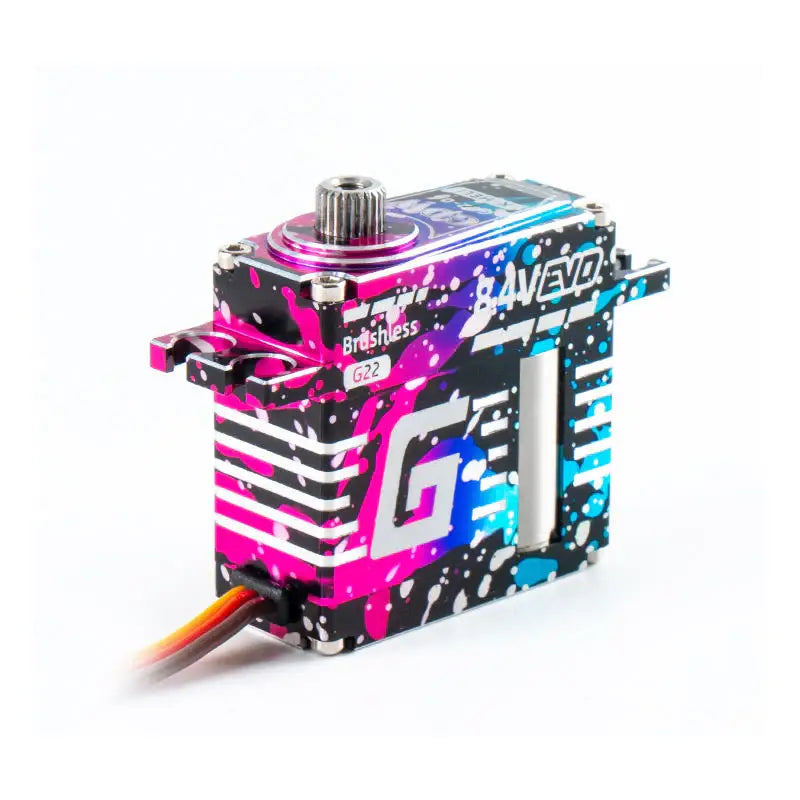

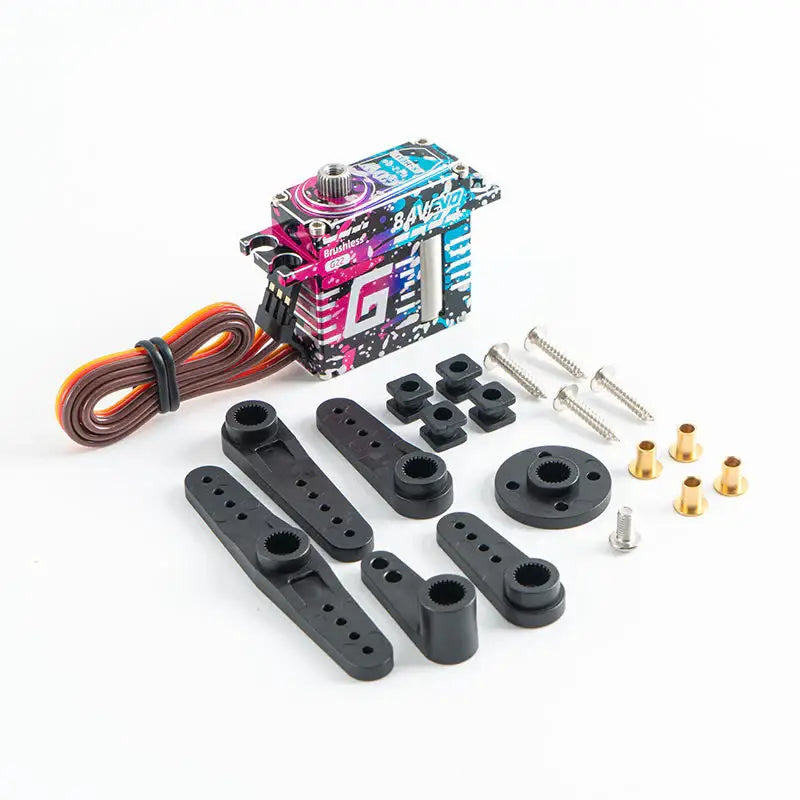

GDW G22 8.4V High Speed Metal Digital Brushless Mini Cyclic 380/700 size

GDW G22 EVO – Mini Brushless HV Cyclic Servo (8.4V)
Full Specifications :
Electrical

Operating Voltage: 6.0V – 8.4V

Pulse Width: 800 μs – 1500 μs – 2200 μs

Frequency: 333 Hz

Programmable: Yes

PerformanceOperating Speed:

0.08 sec / 60° @ 6.0V

0.06 sec / 60° @ 7.4V

0.05 sec / 60° @ 8.4V

Stall Torque:

15.8 kg.cm @ 6.0V

19.5 kg.cm @ 7.4V

22.0 kg.cm @ 8.4V

Mechanical

Gear Material: Steel

Case Material: Full CNC Aluminum

Motor Type: Brushless Motor

Dead Band: 2 μSec

Mechanical Angle: No Limit

Operating Travel: 140° ±5°

Bearing: 2BB

Wire: 60-strand silicone wire / 330 mm

Dimensions & Weight

Size: 35.5 x 15 x 34.75 mm

Weight: 80 g ±5%

Operating Conditions

Operating Temperature: –20°C to +60°C

Communication Protocol: PWM

Short DescriptionThe GDW G22 EVO is a high-performance mini HV brushless cyclic servo designed for demanding RC helicopter applications. With a full CNC aluminum case, steel gears, ultra-fast 0.05s response at 8.4V and 22 kg.cm torque, it delivers exceptional precision, speed and durability for modern 3D flying.
