Hubtech-RC

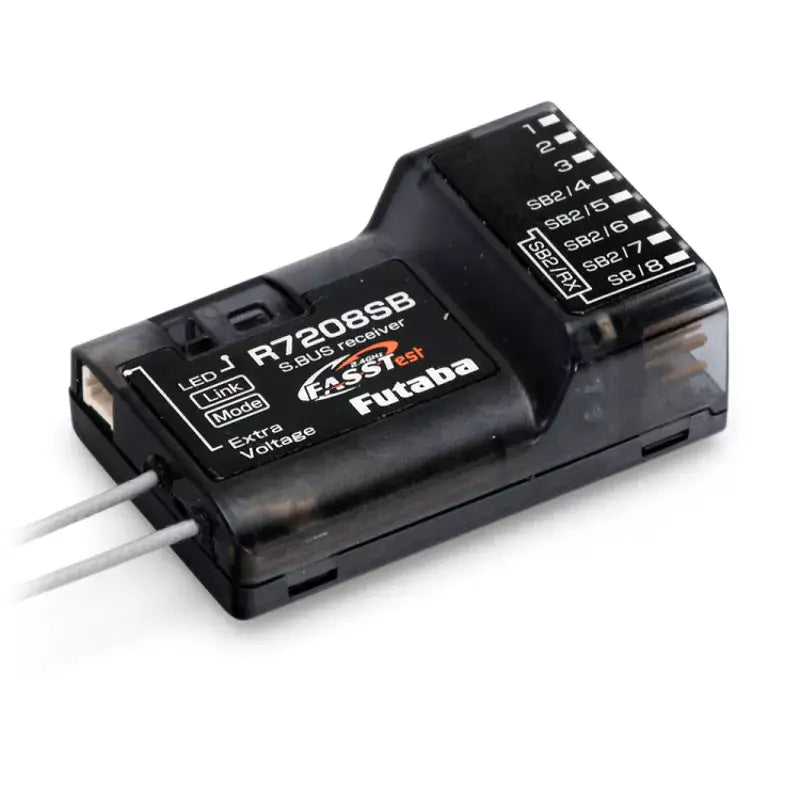

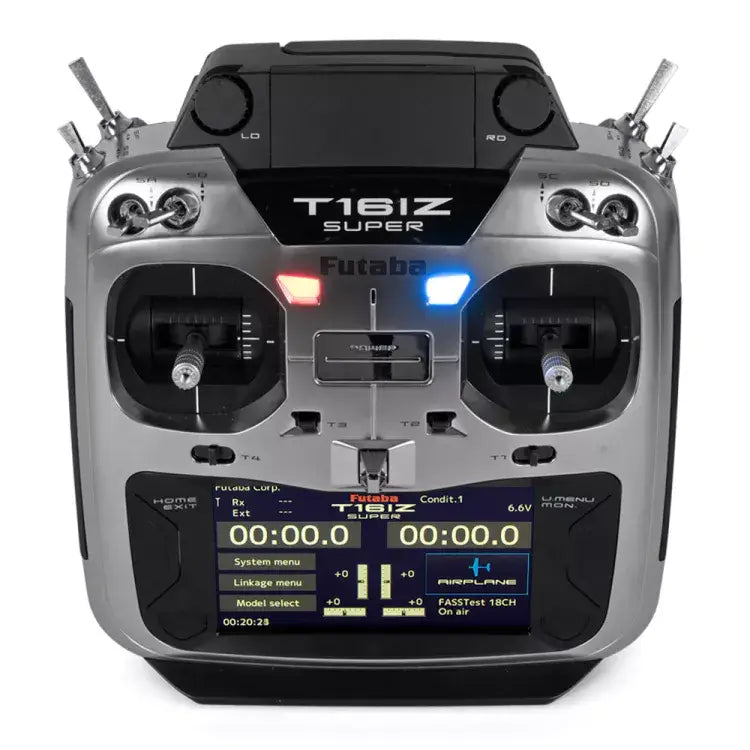

Futaba T16iZ Super Radio + 2X receiver R7208SB

Futaba T16iZ Super Radio + 2X receiver R7208SB

Regular price €689,00 EUR
Regular price Sale price €689,00 EUR
Sale Sold out
Taxes included.

SKU: Item number : FUT5003228

Additional Information

Futaba T16iZ Super Radio + 2X R7208SB receiver
16IZ is a new radio in the Futaba transmitter range. As always Futaba stands for reliability, easy to use & high quality components. This T16iZ futures all of that, while also having on board the latest modultions like FASSTest & T-FHSS. It's a bit like the big brother of 14SG, with brand new components that can keep up with latest technology.
! Important note : The 16IZ is NOT the successor of the 16SZ as one might think. The 16IZ is the big brother of the 14SG and the little brother of the 16SZ with more functionality available than the 14SG !
Features :

Modulation: FASSTest, T-FHSS, S-FHSS
Channels: 16+2
New case black/silver
TX antenna style T32MZ
New Trim-button design
New sidways slider design
New stick design with 2 ball bearings
Mode change without opening the case
Home + Exit-keys integrated in display frame
Touch colour display
Charging socket in bottom plate
Weight without battery = 680g  (16SZ 738g)
Big battery compartment

MODE-1/2/3/4:This transmitter is set on default Mode-2, with the throttle on the left hand stick and elevator on the right stick. But it can be changed in the software to any of the Mode-1/2/3/4 by the user (see the pdf manual page 29).
FASSTest SystemThe T16IZ SUPER transmitter has adopted the bidirectional communication system "FASSTest". Data from the receiver can be cheched in your transmitter. FASSTest is a maximum 18 channels 2.4GHz dedicated system.
Color Touch LCD ScreenT16IZ SUPER has an HVGA 4.3", full-color, backlit LCD touch screen. The screen is transflective which enabsles booth indoor and outdoor visibility.
S.BUS2 SystemBy using the S.BUS2 system, multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.
Model Types

Multicopter
Helicopters: 8 different swash plate types are available
Airplanes: 7 wing types & 3 tail types are available
Functions and mixers necessary for each model type is set in advance at the factory

Lithium-Ion Polymer BatteryT16IZ SUPER is operated by a 7.4V/2000mAh LiPo battery (included) that is charged with an included USB-A/USB-C cable. USB-A Power adapter is sold separately.
MicroSD Card (not included)Model data can be saved to a microSD card (SD: 32MB-2GB / SDHC: 4-32GB). When T16IZ SUPER transmitter software files are released, the software can be updated by using a microSD card update.
Edit ButtonsTwo edit update buttons are provided and the operating screen can be immediately "Returned" to the HOME screen during operation. Setting operation can be performed easily by combining this button with a touch sensor.
Vibration FunctionSelects a function that aerts the operator to various alarms by vibrating the transmitter in addition to sounding a buzzer.
Speech FunctionA function which allows the system to provide telemetry data audibly. This function can also be utilized with commercial available earphones.

Compatible receivers (as of MAY 2023):
S-FHSS PROTOCOL:

R2008GS
R2008SB
R2106SB
R2001SB
R2000SBM

T-FHSS TELEMETRY PROTOCOL:

R3001SB
R3004SB
R3006SB
R3008SB
CGY760R

T-FHSS MONO (NON-TELEMETRY):

R3206SBM
R3106GF

FASSTest12 and FASSTest18:

R7003SB
R7006SB
R7008SB
R7108SB
R7014SB
R7208SB
R7308SB
CGY760R
