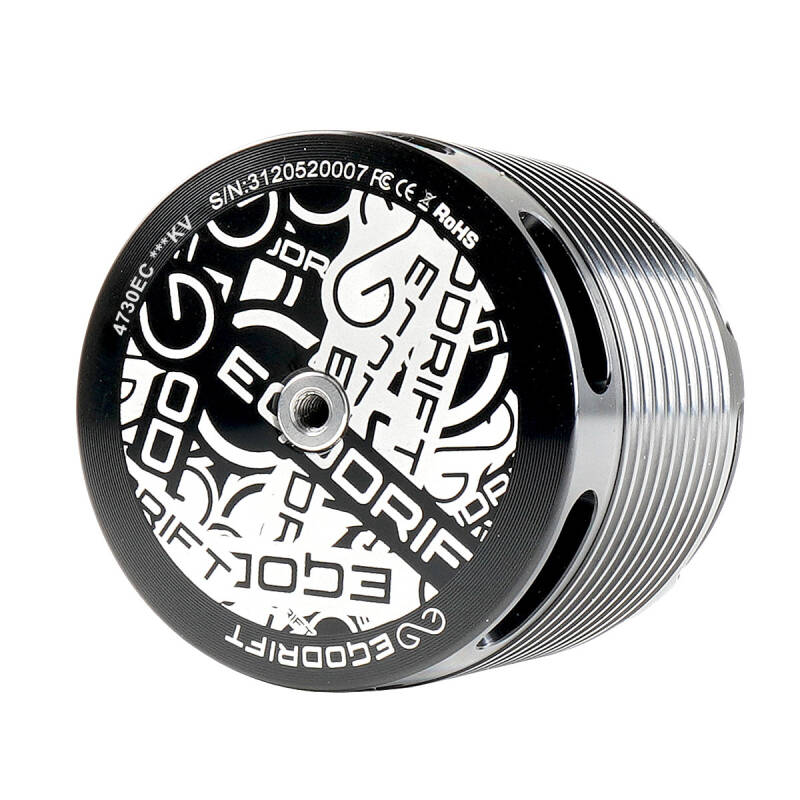

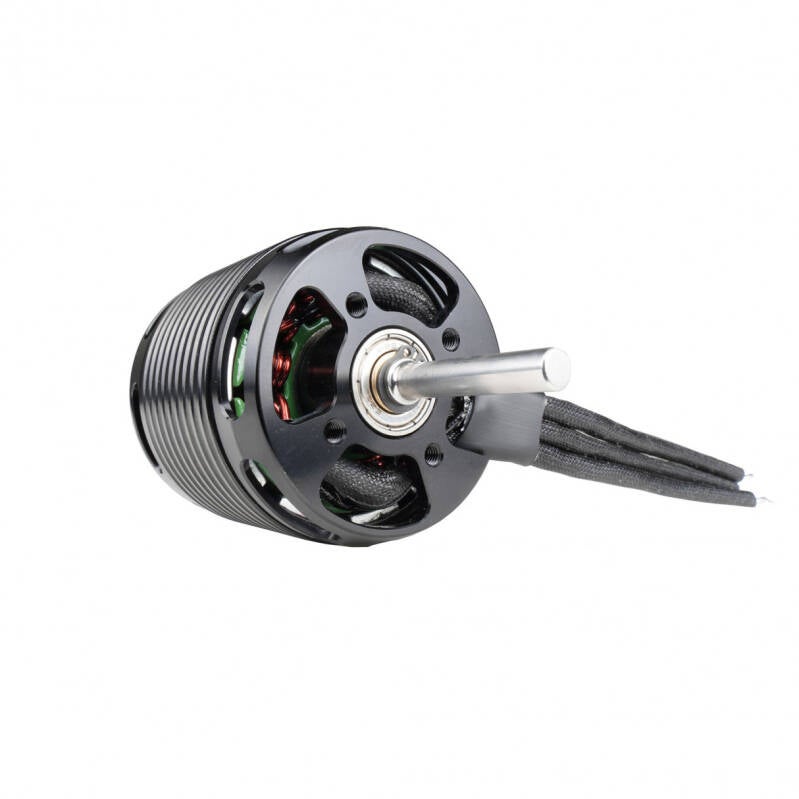

EGODRIFT Tengu 4730EC 540kv Eclipse (12-14S) Helicopter 700/800 class brushless motor

The 4730EC model of the Eclipse Series sets a new standard for power and efficiency. With an improved internal 8mm shaft diameter and enlarged bearings, it’s designed to handle immense torque effortlessly.
The 540KV version weighs only 554 grams, a mere 34 grams more than its 4530HT counterpart, despite its 2mm wider stator and increased shaft and bearings diameter. Perfect for pilots who demand top-tier performance, the 4730EC ensures cooler operation, enhanced efficiency for longer flight times, and a smooth, linear throttle response.

Key Features:

World’s first 0.1mm stator laminations for unmatched efficiency
Robust 8mm internal shaft and larger bearings
Superior torque and power with cooler running temperatures
Ideal for high-demand flight conditions

World’s First 0.1mm Lamination Heli Motors – Introducing the EGODRIFT 47EC Eclipse Series
Meet the all-new 4730EC and 4726EC Eclipse Series – the first and only heli motors in the world to feature revolutionary 0.1mm stator laminations, delivering unprecedented smoothness, efficiency, and responsiveness.
The reduced eddy currents and cleaner commutation result in a near-instantaneous throttle response and yet improved efficiency and performance. Experience a new generation of power, torque, and control with the 47EC Eclipse Series.

Manufacturer: EGODRIFT
Stator size: 4730
Motor configuration: 12N10P
Motor weight: 554g (540Kv version)
Motor wire type: High temperature copper wire
Motor shaft: Hardened Steel
Mounting hole pattern: 4xM4(30)
Laser Design: EGODRIFT Stickerbomb
LiPo cells: 12S, 14S
Stator diameter: 47 mm
Stator height: 30 mm
Stator lamination: 0.1 mm (++)

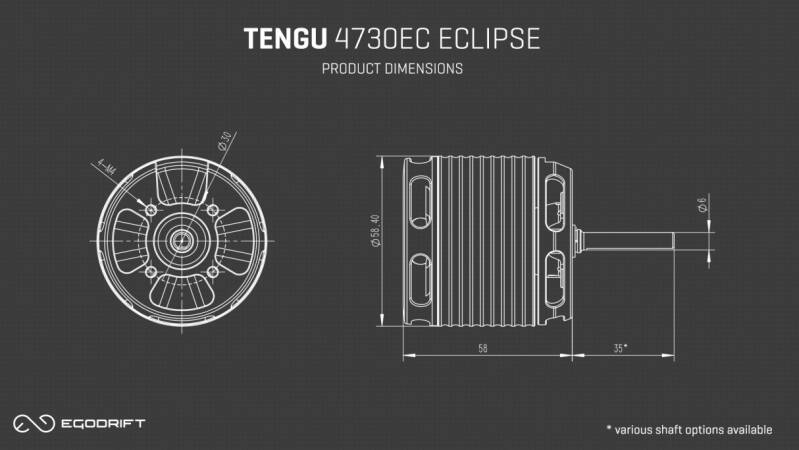

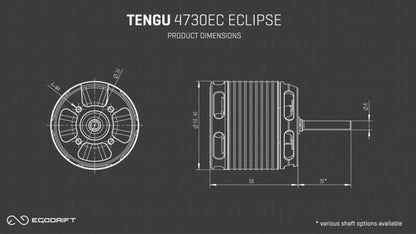

Body Length: 58.00 mm
Diameter: 58.40 mm
Connection: Gold Plated Amass Bullet Connectors
Shaft: ø6mm X 55mm
