EGODRIFT Tengu 4530HT / 525kV (12-14S) Helicopter 700/800 class brushless motor — 55mm

Hand-wound EGODRIFT Tengu 4530 HT (High Torque) Series 525kV brushless motor for 700-800mm class helicopters, such as the XLPower Specter & Protos, SAB Goblin 700-770, Quest Impaction, Align T-Rex 700-800, Mikado Logo 700, or Gaui 700.Our 4530HT series sacrifices a bit of the extra flight time gained from our HS series motors to crank out an extra 15-20% of power. It and was developed with hardcore (MasterClass) competition pilots in mind, but is also the perfect fit for all 760-800 (stretch) kits, heavy and/or multi rotor head setups or true "power aficionados".Please select the correct external shaft length below:35mm fits XLPower, Goosky, OMP Hobby, SAB Goblin models.55mm fits Align, Mikado and Gaui models.

Manufacturer: EGODRIFT
Stator size: 4530
Motor configuration: 12N10P
Motor weight: TBA
Wire colour: Copper
Motor wire type: High temperature copper wire
Motor wire: 1.3mm
Motor kV: 525 kV
Motor shaft: Hardened Steel
Mounting hole pattern: 4xM4(30)
Laser Design: EGODRIFT Stickerbomb
LiPo cells: 12S, 14S
Stator diameter: 45 mm
Stator height: 30 mm
Stator lamination: 0.15 mm (+)

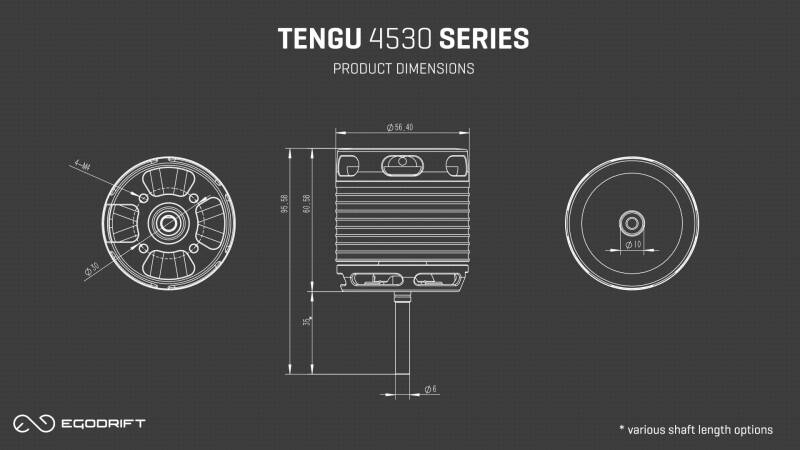

Body Length: 60.58mm (2.39 inch)
Diameter: 56.40 mm (2.22 inch)
Idle current: TBA
Maximum Current: TBA
Maximum Power: TBA
Internal resistance: 12 mOhm
Connection: Wire / Gold plated plugs
Designer: Yutao Zou Yutao Zou

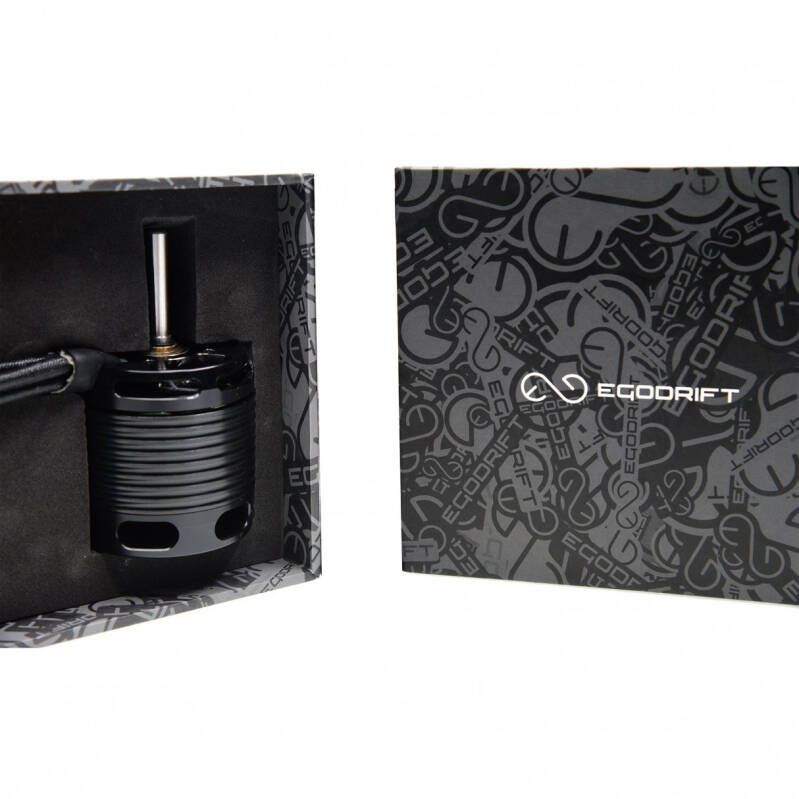

What's in the box

1x Tengu 4530 HT Series/525kV motor
35mm or 55mm exterior length shaft (please choose)
3 x Gold plated connectors, Male
3 x Gold plated connectors, Female
4 x Mounting screws
1 x Bell securing screw
