EGODRIFT Tengu 4230EC 550KV Eclipse Ideal for 12S 700 Ultra Light (Goblin IL Piuma, Tron Dnamic...)

The EGODRIFT Tengu 4230EC “Eclipse” is a high-performance brushless motor designed for demanding RC helicopter pilots. Featuring a custom 42 mm stator, this motor delivers outstanding power, efficiency, and smooth throttle response. It is perfectly suited for modern lightweight and ultra-light 700 class helicopters, as well as scale and high-performance builds.
Engineered for reliability and performance, the Tengu Eclipse offers excellent cooling, high torque, and consistent power output even under extreme flight conditions.

Ideal Applications

Ultra-light 700 class helicopters (IL Piuma, Tron DNAmic, OXY Flash, etc.)

700–800 size scale helicopters

Competition and sport flying (F3C, Sport, Precision)

High-performance 580–610 size helicopter builds

Technical Specifications

Stator Size: 4230

550KV

Motor Configuration: 12N10P

Stator Diameter: 42 mm

Stator Height: 30 mm

Shaft Diameter: 6.0 mm (hardened steel)

External Shaft Length: 36 mm

Mounting Pattern: 4 × M4 (30 mm)

Battery Compatibility: 6S / 7S / 8S / 10S / 12S LiPo

Connectors: Gold-plated bullet connectors (included)

Weight (520 kV version): 436 g

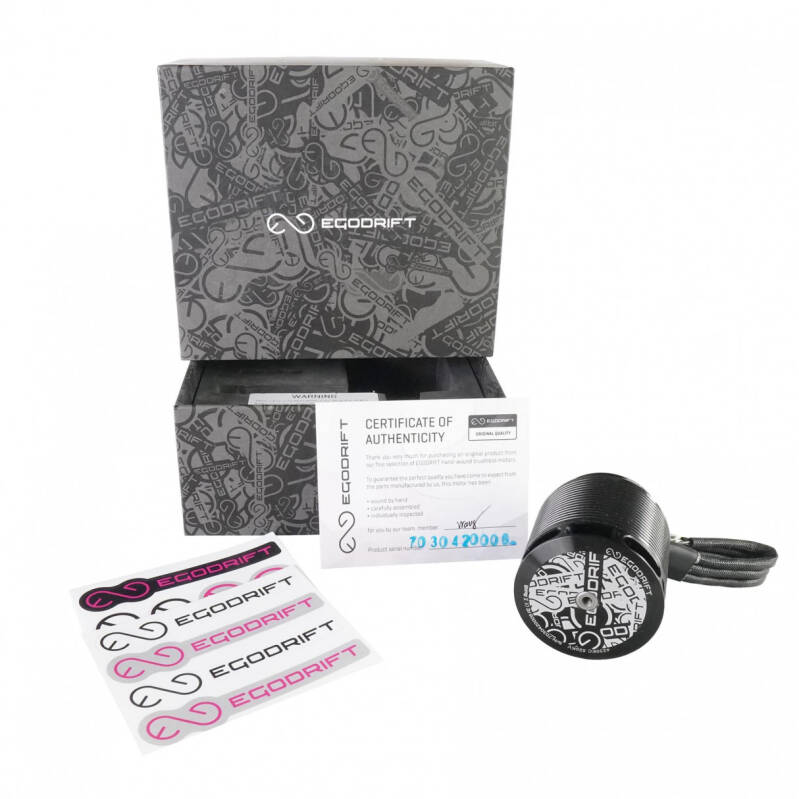

Box Contents

Tengu 4230EC Eclipse motor (kV optional)

3 pairs of gold-plated bullet connectors

Mounting hardware

EGODRIFT sticker sheets

Certificate of authenticity
