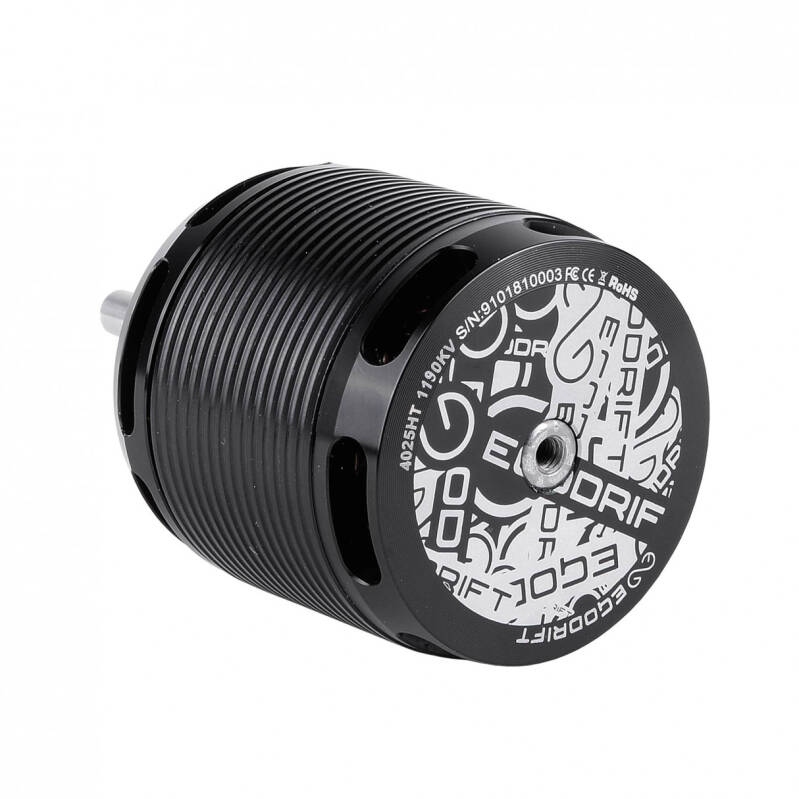

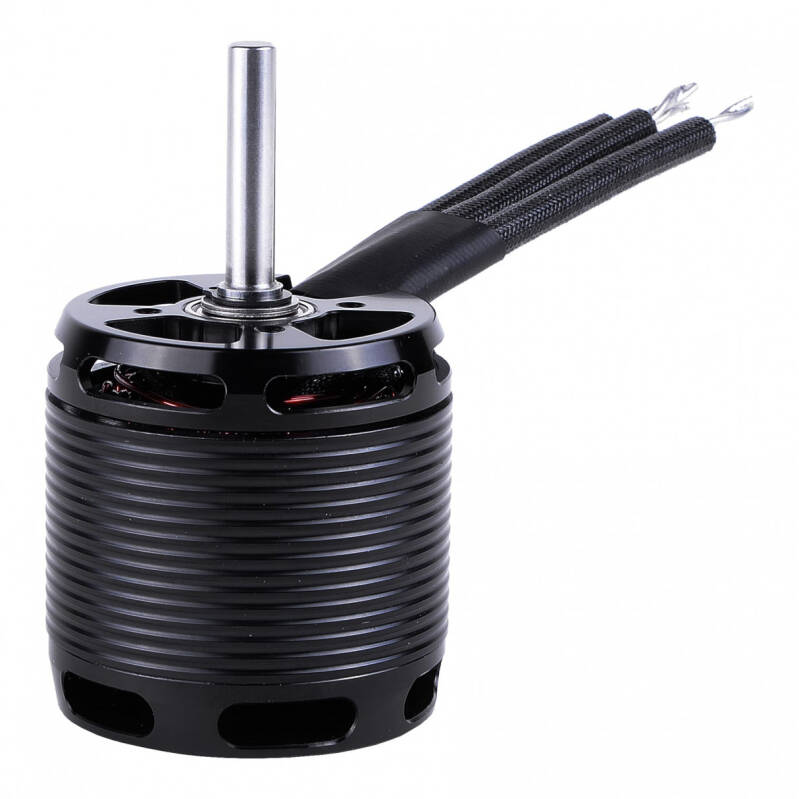

EGODRIFT Tengu 4025HT / 1190kV (6S) Helicopter 550/600 class brushless motor

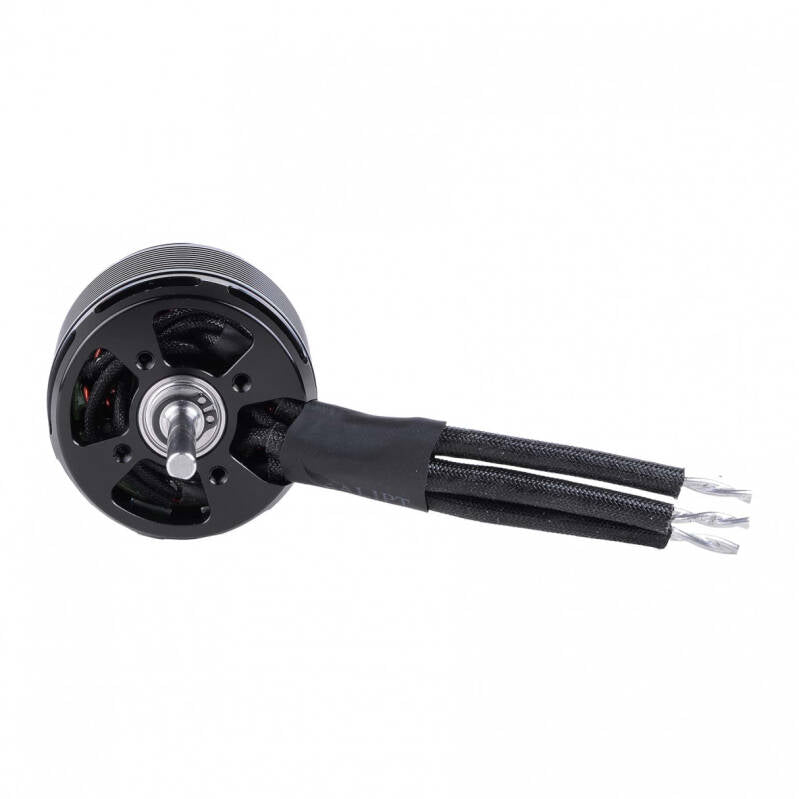

Hand-wound EGODRIFT Tengu 4025HT motor for the Kraken 580 and other 6S high-kV setups in the 550-600mm class. The motor comes with a kV rating of 1190kV and features a modified base for yet improved cooling and performance.
EGODRIFT Tengu high-performance brushless motors for RC heli are the result of years of testing and development. The 4025HT comes with a kV rating of 1190kV for 6S LiPo batteries and is the perfect choice for your SAB Goblin Kraken 580 and other high-kv-550mm sized helicopter model.
Like all models within the Tengu series, the top of the can features the iconic and heat-resistant EGODRIFT Stickerbomb design, to add the finishing touch to your 550 class heli build.
Each motor comes with mounting screws and an (optional) screw for additional securing of the bell.

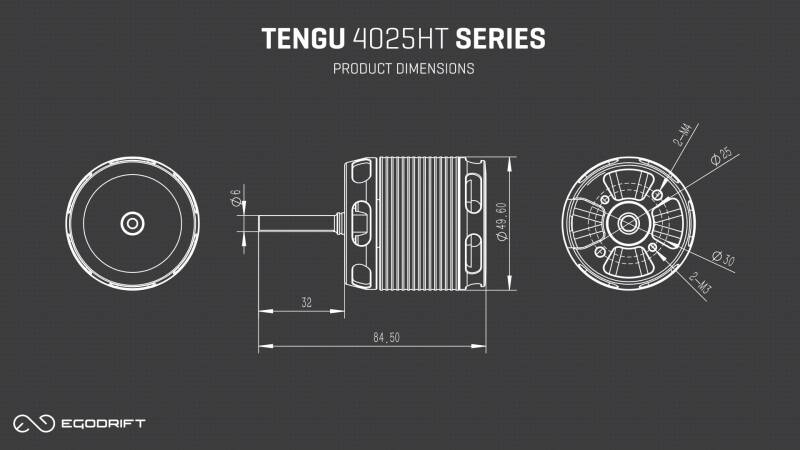

Please note:Due to the modified base (see diagram) the 4025HS shaft kits will NOT fit the new 4025HT motors! The available 6x32mm shaft for the 4025HT will fit the Kraken 580.
Specifications

Manufacturer: EGODRIFT
Stator size: 4025
Motor configuration: 12N10P
Wire colour: Copper
Motor wire type: High temperature copper wire
Motor wire: 1.5mm
Motor kV: 1190 kV
Motor shaft: Hardened Steel
Shaft diameter: 6.0 mm
External shaft length (mm): 32 mm
Mounting hole pattern: 2xM4(30) + 2xM3(25)
Laser Design: EGODRIFT Stickerbomb
LiPo cells: 6S
Stator diameter: 40 mm
Stator height: 25 mm
Stator lamination: 0.15 mm (+)
Body Length: 52.5mm (2.07 inch)
Diameter: 49.6mm (1.95 inch)
Idle current: TBD
Maximum Current: TBD
Maximum Power: TBD
Internal resistance: TBD
Connection: Wire / Gold plated plugs
Designer: Yutao Zou

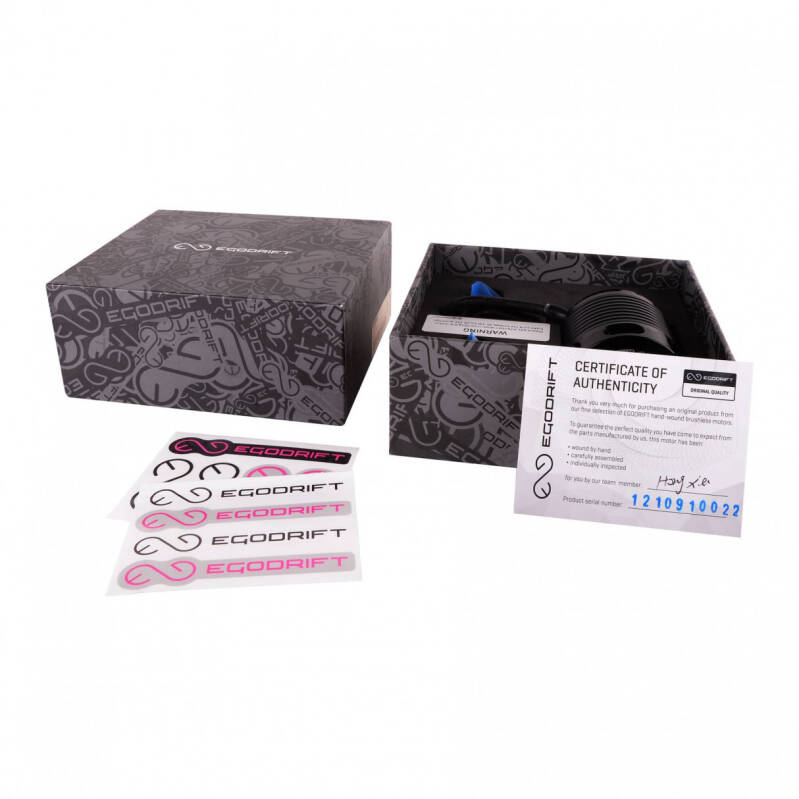

What's in the box

1 x Tengu 4025HT / 1190kV Motor (6x32mm shaft)
3 x Gold Plated Connector, Male
3 x Gold Plated Connector, Female
4 x Mounting Screws
1x Bell securing screw
