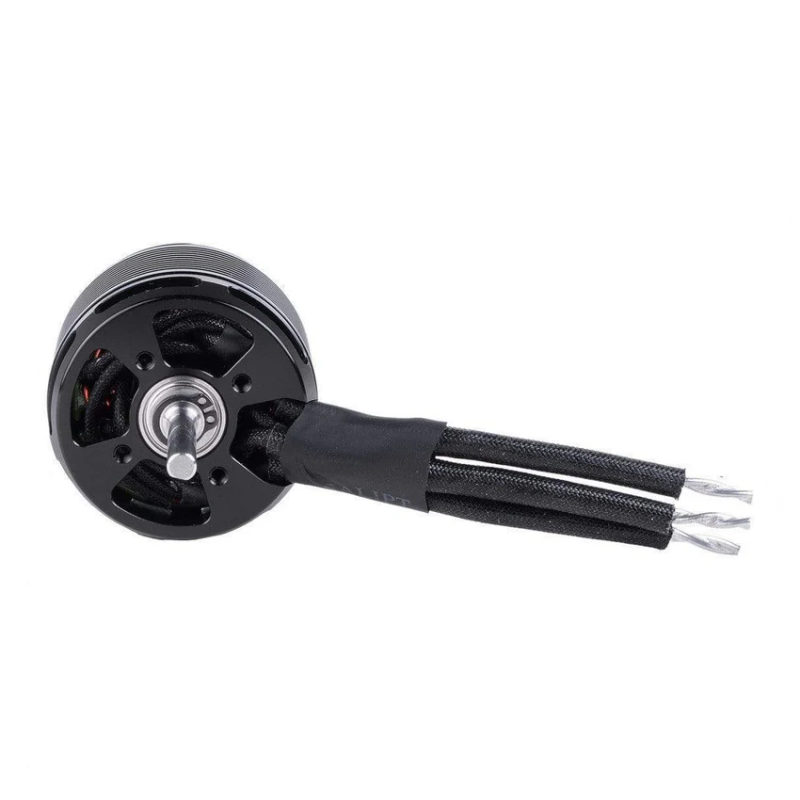

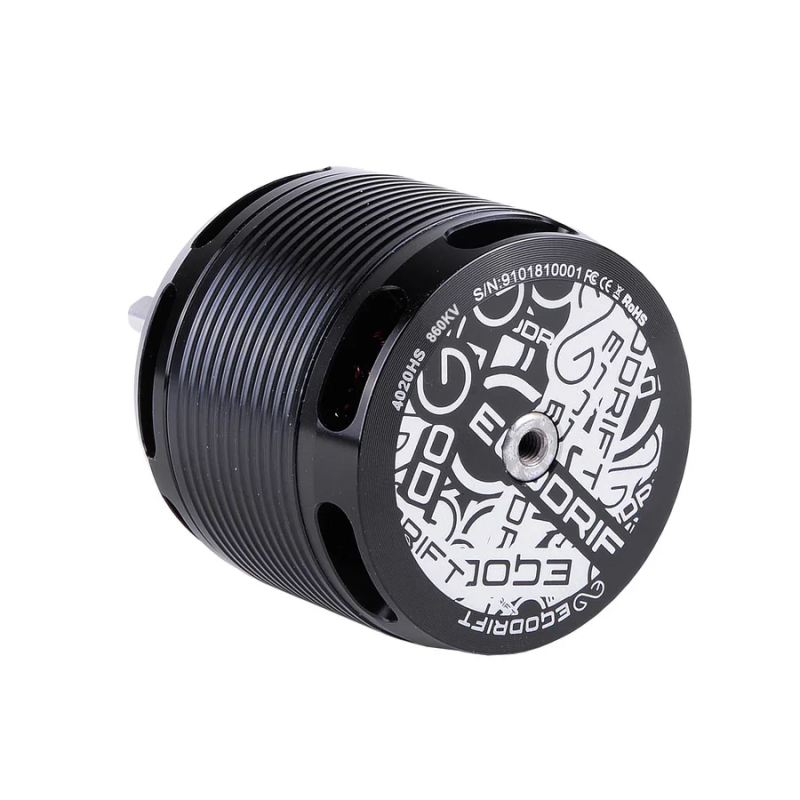

EGODRIFT Tengu 4020HS 860 KV Ideal 6S 500-600 size (IL Goblin PRO 520)

The EGODRIFT Tengu 4020HS 860 kV is a high-performance, hand-wound brushless motor designed for demanding RC helicopter pilots. Optimized for 6S LiPo setups, it delivers excellent power, efficiency, and thermal stability. Thanks to its robust construction and smooth power delivery, this motor is perfectly suited for sport, scale, and 3D flying.
With its optimized stator design and high-quality materials, the Tengu 4020HS offers a perfect balance between power, reliability, and efficiency.

Ideal For

500–600 class RC helicopters

6S LiPo battery setups

Sport flying, scale models, and 3D performance builds

Technical Specifications

Stator Size: 4020

Motor Configuration: 12N10P

kV Rating: 860 kV

Battery Compatibility: 6S LiPo

Continuous Power: 2040 W

Peak Power: 2640 W

Continuous Current: 85 A

Peak Current: 110 A (2 s)

Stator Diameter: 40 mm

Stator Height: 20 mm

Body Length: 45 mm

Body Diameter: Approx. 49.6 mm

Shaft: Hardened steel 6 mm × 32 mm

Idle Current: Approx. 5.8 A

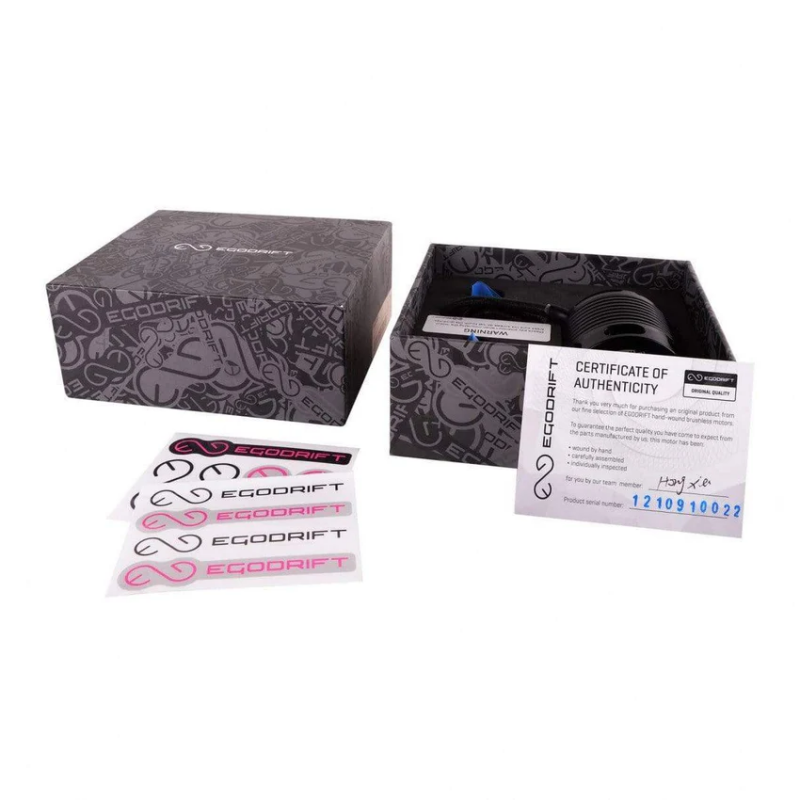

Box Contents

1 × EGODRIFT Tengu 4020HS 860 kV motor

Mounting screws

Bell-securing screw
