EGODRIFT Tengu 3220HS / 960kV shaft ø5mm X 22mm Helicopter 380/420/450 class brushless motor

Hand-wound EGODRIFT Tengu 3220HS motor for 380 class rc helicopter models (and Henseleit TDSF, please choose corresponding shaft) with a kV rating of 960kV - intended for use with 6S LiPo batteries.
EGODRIFT Tengu high-performance brushless motors for RC heli are the result of one year of testing and development. The 3220HS comes with a kV rating of 960kV for 6S LiPo batteries and is the perfect choice for your 380 sized SAB Goblin (and Goblin Buddy), Oxy4Max or scale helicopter model. With the addition of the new 5x36mm shaft, this motor is also the perfect choice for your Henseleit TDSF model. (not shown in the pictures)

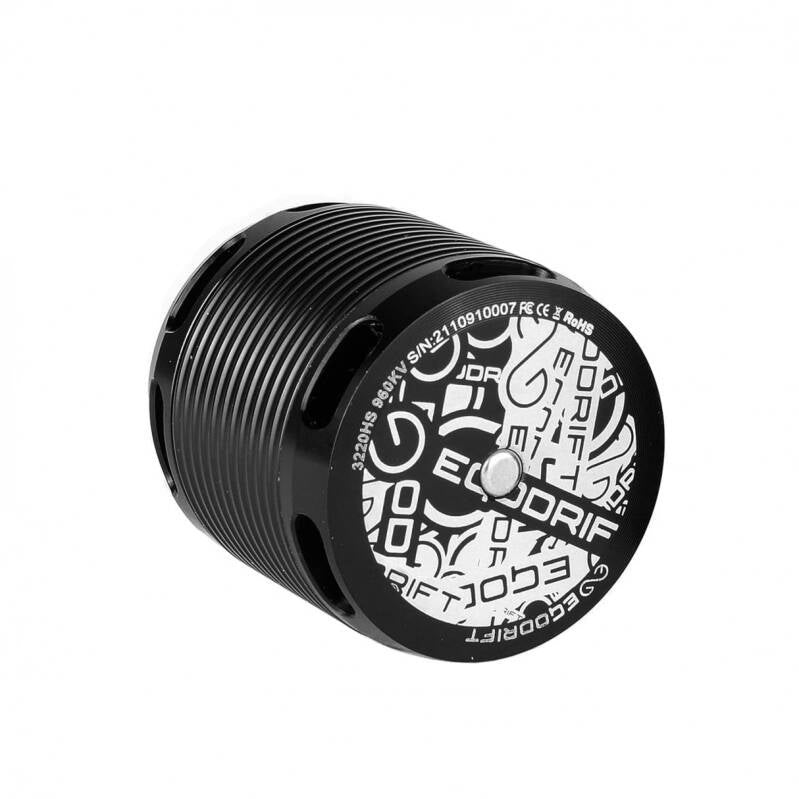

Like all models within the Tengu series, the top of the can features the iconic and heat-resistant EGODRIFT Stickerbomb design, to add the finishing touch to your 380 class heli build.
Each motor comes with mounting screws and 3 pairs of gold bullet connectors.
Specifications

Manufacturer: EGODRIFT
Stator size: 3220
Motor configuration: 12N10P
Motor weight: 180g
Wire colour: Copper
Motor wire type: High temperature copper wire
Motor wire: 0.38mm
Motor kV: 960 kV
Motor shaft: Hardened Steel
Mounting hole pattern: 4xM3(25)
Laser Design: EGODRIFT Stickerbomb
LiPo cells: 6S
Stator diameter: 32 mm
Stator height: 20 mm
Stator lamination: 0.15 mm (+)

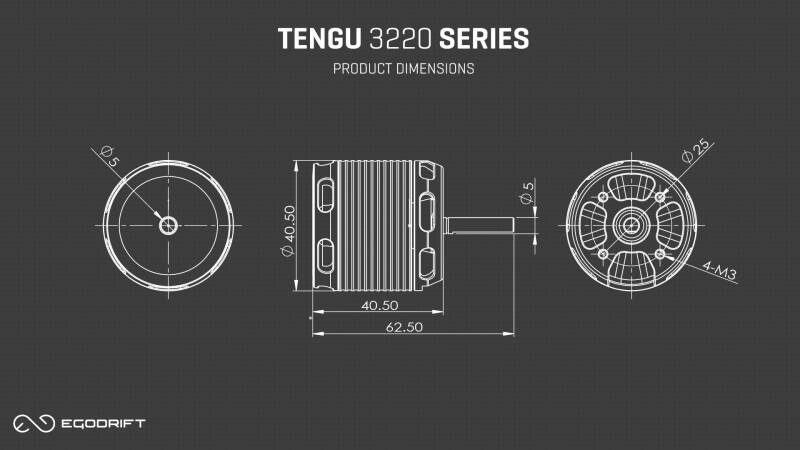

Body Length: 41.1mm (1.62 inch)
Diameter: 40.5mm (1.59 inch)
Idle current: 3.1A
Maximum Current: 60A (Peak: 70A / 2 seconds)
Maximum Power: 1680W (Peak: 2000W / 2 seconds)
Internal resistance: 22.1 mOhm
Connection: Wire / Gold plated plugs
Designer: Yutao Zou

What's in the box

1 x Tengu 3220HS / 960kV Motor (choose shaft)
3 x Gold Plated Connector, Male
3 x Gold Plated Connector, Female
4 x Mounting Screws
