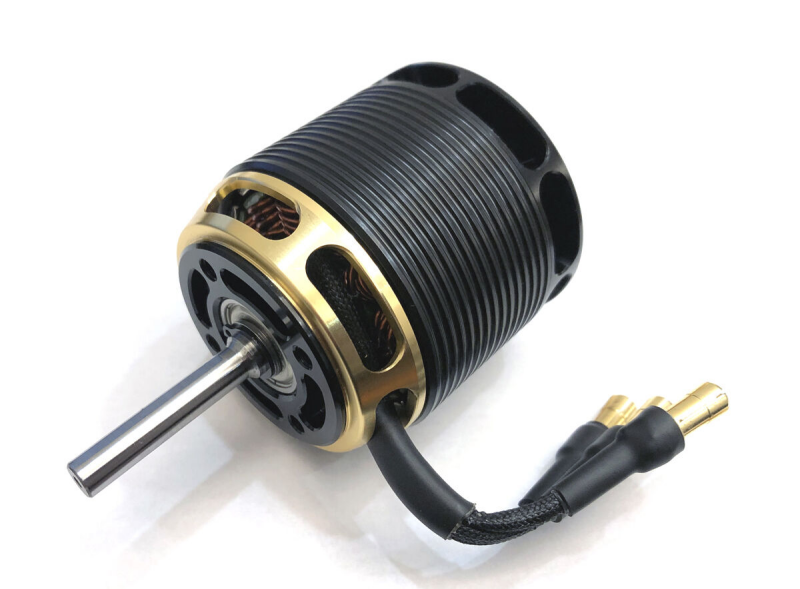

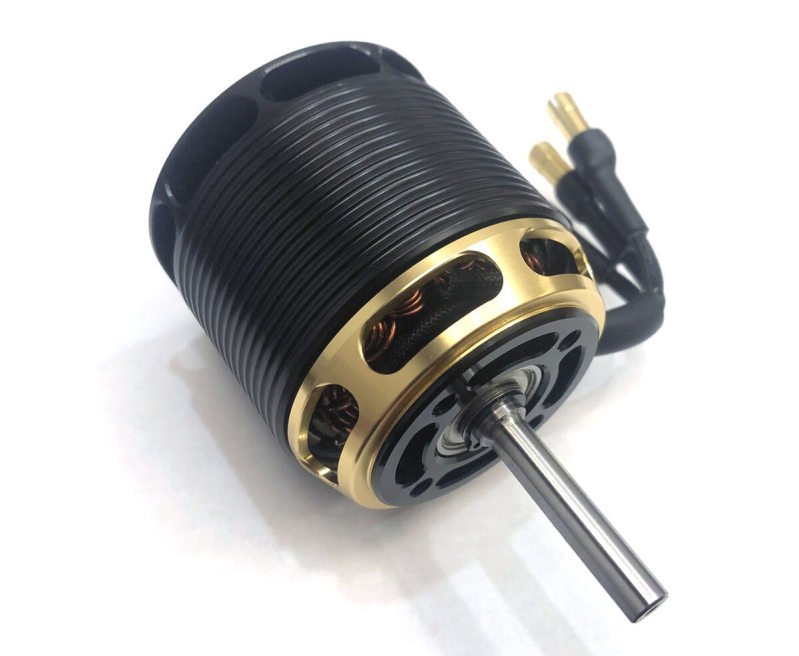

Combove TYPE III 4225‑570KV Brushless Motor – Ideal for 12S 700 Ultra Light (Goblin IL Piuma, Tron Dnamic...)

The Combove TYPE III 4225-570KV is a high-efficiency, high-torque brushless motor designed for demanding RC helicopter, UAV, and high-power electric aircraft applications. Built with premium internal components and optimized airflow, it delivers outstanding power, reliability, and thermal stability even under extreme loads.
With up to 3800W continuous power and 5900W peak output, this motor is perfectly suited for pilots and builders who require maximum performance without compromising durability. The advanced stator design combined with high-temperature NdFeB magnets ensures excellent efficiency and long service life.

Key Features

570KV for high efficiency and strong RPM output

Up to 3800W continuous power, 5900W peak power

High-quality copper winding (6T + 5T Delta, 1.2mm single-strand wire)

High-temperature NdFeB magnets (180°C) for extreme reliability

Optimized cooling design for lower operating temperatures

Premium NSK 698ZZ bearings for smooth operation and durability

Adjustable timing (5°–15°) for fine performance tuning

Compatible with wide ESC frequency range (8kHz–32kHz)

Supports up to 12S LiPo input

Technical Specifications

KV Rating: 570 RPM/V

Stator Size: 42 × 25 mm

Stator Configuration: 12 slots / 10 poles

Internal Resistance: 0.017 Ω

No-Load Current (Io @10V): 0.92 A

Continuous Current: 95 A

Peak Current (3s): 140 A

Continuous Power: 3800 W

Peak Power: 5900 W

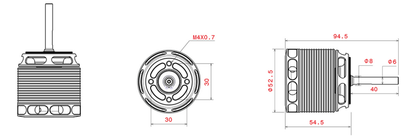

Motor Diameter: 52.5 mm

Body Length: 54.5 mm

Shaft Diameter: 6 mm

Total Shaft Length: 95 mm

Weight: Approx. 360 g

Battery Compatibility: Up to 12S LiPo

Bearings: NSK 698ZZ (8 × 19 × 6 mm)

Ideal Applications

600–700 size RC helicopters

High-power UAV & drone platforms

Performance aerobatic electric aircraft

Custom high-power brushless projects
